1
Engine displacement
500
2
Year
2010
3
Trim
RANGER 4X4 500 EFI - R10TH50AG/AR
4
Parts Catalog

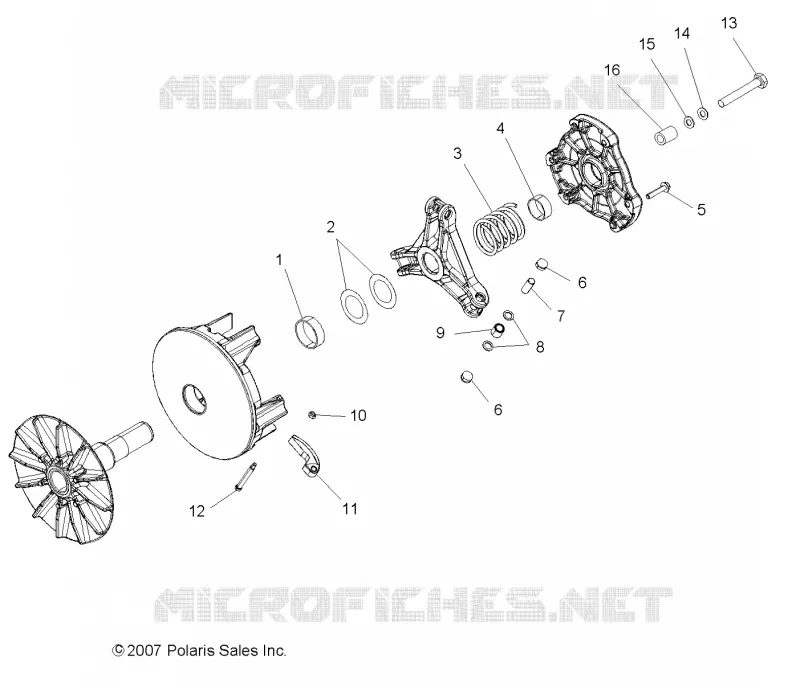

DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
IGNITION SYSTEM
DRIVE TRAIN, PRIMARY CLUTCH
-
1
2
2
2
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
-
Asm. Clutch Basic Narrow [Incl. All Less 3 11 13-16]
1322888
$871,49 Unit Price incl. VAT
1
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
2
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
2
SPACER-1.350X1.750X.025-Y
5242981
$7,34 Unit Price incl. VAT
2
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
2
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
3
SPRING CLUTCH BLUE/RED
7043199
$89,24 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
6
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
7
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
8
WASHER-CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
9
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
10
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
11
WEIGHT-SHIFT 25-52G PM
5632409
$62,99 Unit Price incl. VAT
11
Weight Shift 25-52 CS [Built 10/19/09 and After]
5632391
$152,24 Unit Price incl. VAT
12
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
13
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
14
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
15
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
16
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
