Engine displacement
400
2
Year
2013
3
Trim
RANGER 400 MIDSIZE - R13RH45AG
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS
5

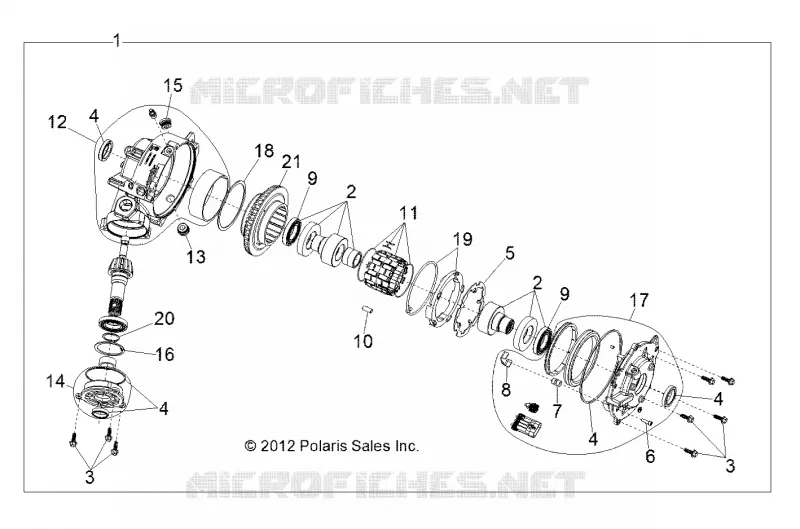

Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT DRIVE SHAFT
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
2
2
3
4
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
16
21
1
ASM. FRONT GEARCASE
1333066
$3 008,24 Unit Price incl. VAT
2
KIT OUTPUT HUB [INCL. HUB ASM. FEMALE HUB ASM. MALE]
3234936
3236672
$860,99 Unit Price incl. VAT
3
Kit Bolt [Incl. 8 Bolts]
3234405
$52,49 Unit Price incl. VAT
4
Kit Seal Repair [Used for the Plastic Cover]
3235330
$162,74 Unit Price incl. VAT
5
PLATE ARMATURE
3234407
$209,99 Unit Price incl. VAT
6
SET SCREW
3234408
$52,49 Unit Price incl. VAT
7
Asm. Button Thrust
3234594
Not Available
8
Plate Thrust
3235183
$115,49 Unit Price incl. VAT
9
BEARING
3234390
$60,89 Unit Price incl. VAT
10
KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]
3234393
$10,49 Unit Price incl. VAT
11
ASM. ROLL CAGE [INCL. CAGE SPRINGS CLIPS]
3235261
$666,74 Unit Price incl. VAT
12
ASM. GEARCASE
3235430
$1 154,99 Unit Price incl. VAT
13
ASM. DRAIN PLUG MAGNETIC
3234412
$83,99 Unit Price incl. VAT
14
Cover Input Machined
3235337
$241,49 Unit Price incl. VAT
15
PLUG OIL FILL
3234414
3233942
$62,99 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
ASM. COVER OUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING]
3235162
3236663
$955,49 Unit Price incl. VAT
18
SPACER-RING GEAR
3234437
$36,74 Unit Price incl. VAT
19
SPRING TORSION RETAINER
3234908
$173,24 Unit Price incl. VAT
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
ASM. RING AND PINION GEAR [INCL. RING GEAR SUB ASM. PINION GEAR DOWEL PIN]
3235188
$1 186,49 Unit Price incl. VAT
