1
Engine displacement
900
2
Year
2013
3
Trim
RANGER CREW 900 DIESEL - R13WH90DG
4
Parts Catalog

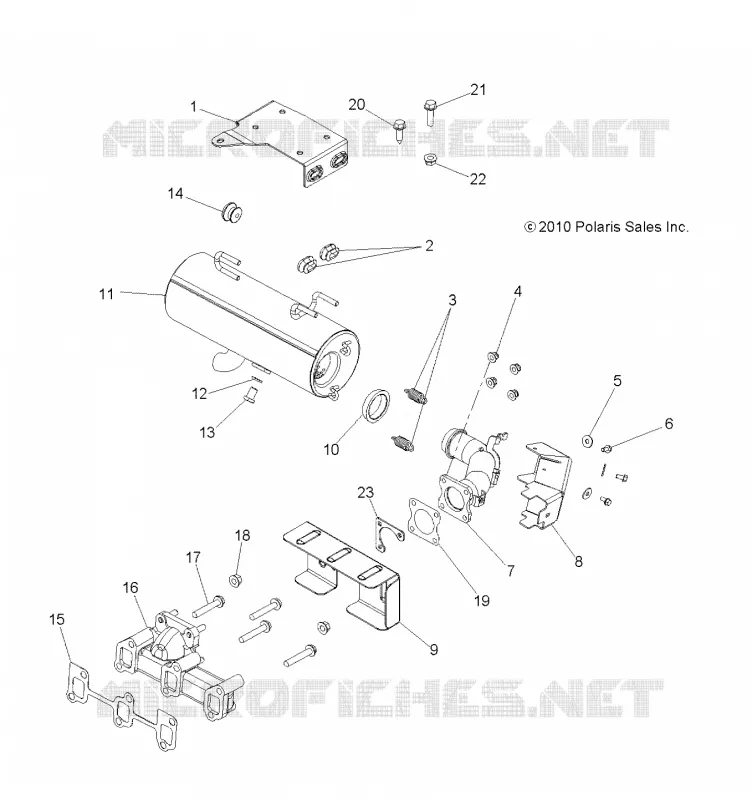

EXHAUST
5
Parts Diagram
Parts Catalog
CYLINDER HEAD AND BONNET
by
GEAR HOUSING
EXHAUST
1
MOUNT SILENCER MATTE BLACK
5254657458
$62,99 Unit Price incl. VAT
2
GORMMET SILENCER MOUNT
5436598
$7,34 Unit Price incl. VAT
3
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
4
NUT-HXFL M8X1.25 ZOD
7547440
$6,29 Unit Price incl. VAT
5
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
6
SCR-1/4-20X3/8 TFM HW-M
7515197
$2,09 Unit Price incl. VAT
7
Pipe Exhaust Black
1262206489
Not Available
8
Shield Heat Exhaust Rear
5254238
$73,49 Unit Price incl. VAT
9
Shield Manifold
5255378
$99,74 Unit Price incl. VAT
10
SEAL EXHAUST SOCKET
3610181
$57,74 Unit Price incl. VAT
11
Silencer Black [Incl. 12 13]
1262207489
$750,00 Unit Price incl. VAT
12
WASHER-CLEAN OUT .51X.75X.09
7556230
$2,09 Unit Price incl. VAT
13
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
14
Grommet Silencer Mount
5413377
5414307
$9,44 Unit Price incl. VAT
15
Gasket Manifold
3070085
$41,99 Unit Price incl. VAT
16
Manifold Exhaust
3070084
Not Available
17
Bolt
3070087
$12,59 Unit Price incl. VAT
18
Nut
3070089
$7,34 Unit Price incl. VAT
19
Gasket Exhaust Manifold
3070003
$36,74 Unit Price incl. VAT
20
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
21
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
22
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
23
Plate Manifold
5254672
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
