1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ
4
Parts Catalog
BODYWORK
5
Parts Diagram
Parts Catalog
CABIN
by
CLUTCH COVER

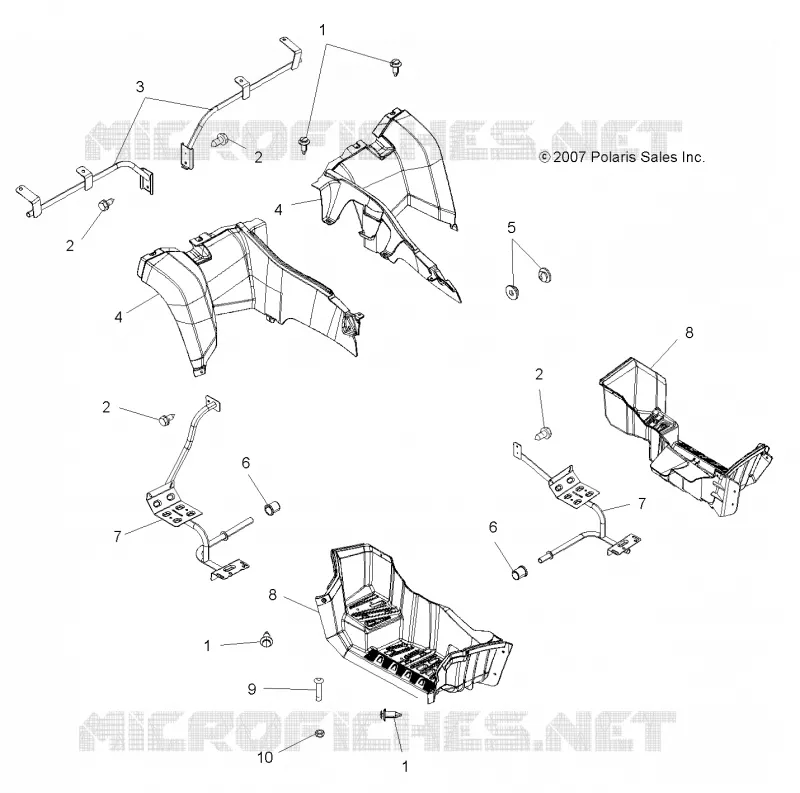

BODYWORK
1
1
1
2
2
2
2
3
3
4
4
4
4
4
4
4
4
4
4
4
4
5
6
6
7
7
7
7
8
8
8
8
9
10
1
2
2
3
3
3
4
5
5
6
6
7
8
9
10
1
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
2
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
3
Support Fender RH
1015267067
$152,24 Unit Price incl. VAT
3
Support Fender LH
1015266067
$152,24 Unit Price incl. VAT
4
Cab Rear NBU Camo LH [AT]
5437795455
$691,94 Unit Price incl. VAT
4
Cab Rear Sage Brush Green Metallic RH [AX]
5436546498
Not Available
4
Cab Rear Sage Brush Green Metallic LH [AX]
5436130498
$423,14 Unit Price incl. VAT
4
Cab Rear Indy Red LH [AW]
5436130293
Not Available
4
Cab Rear Indy Red RH [AW]
5436546293
$455,69 Unit Price incl. VAT
4
Cab Rear NBU Camo RH [AT]
5437796455
$660,44 Unit Price incl. VAT
5
Grommet Rubber Mount
5412623
$4,19 Unit Price incl. VAT
6
Bushing
5433369
$20,99 Unit Price incl. VAT
7
Footwell Passenger LH
1015808329
$356,99 Unit Price incl. VAT
7
Footwell Passenger Black RH
1016239329
$246,74 Unit Price incl. VAT
8
Footwell Black LH
5436134070
$509,24 Unit Price incl. VAT
8
Footwell Black RH
5436135070
$509,24 Unit Price incl. VAT
9
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
10
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
