1
Engine displacement
0
2
Year
1998
3
Trim
EURO LITE TOURING - E983133
4
Parts Catalog

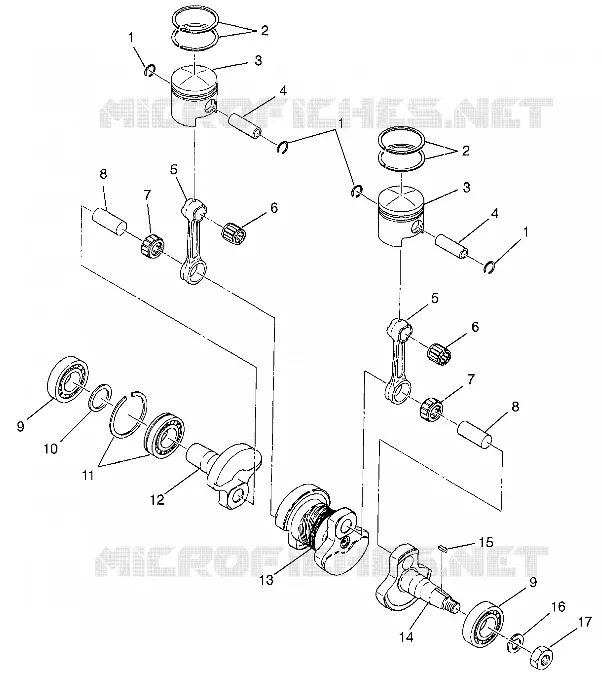

PISTON CRANKSHAFT LITE TOURING 0983133 AND EUROPEAN LITE TOURNG E983133 (4941934193C005)
5
Parts Diagram
Parts Catalog
TOOL KIT LITE TOURING 0983133 AND EUROPEAN LITE TOURNG E983133 (4941934193A014)
by
CARBURETOR LITE TOURING 0983133 AND EUROPEAN LITE TOURNG E983133 (4941934193C006)
PISTON CRANKSHAFT LITE TOURING 0983133 AND EUROPEAN LITE TOURNG E983133 (4941934193C005)
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
13
13
14
14
14
14
15
16
17
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
13
13
14
14
14
14
15
16
17
1
CLIP PISTON PIN (10) (Piston Pin)
3084456
Not Available
2
RING PISTON (.010 Oversize)
3084319
Not Available
2
RING PISTON
3083587
Not Available
2
RING .020 O/S (.020 Oversize)
3083719
Not Available
3
PISTON (.020 O/S) Substituted by 3085842 (.50mm/.020# O/S)
3084605
Not Available
3
PISTON STD. Substituted by 3085840 (Standard)
3084603
Not Available
3
PISTON (.010 O/S) Substituted by 3085841 (.25mm/.010# O/S)
3084604
$216,29 Unit Price incl. VAT
4
PIN PISTON Substituted by 3085021
3084455
Not Available
5
ROD CONNECTING
3083581
Not Available
6
BEARING SMALL END
3080998
Not Available
7
BEARING LARGE END
3083583
$37,16 Unit Price incl. VAT
8
PIN CRANK
3083582
$26,45 Unit Price incl. VAT
9
BEARING BALL
3084580
Not Available
10
SPACER
3083399
$1,46 Unit Price incl. VAT
11
BEARING BALL
3084602
Not Available
12
CRANKSHAFT #3
3083580
$303,96 Unit Price incl. VAT
13
GEAR DRIVE OIL PUMP
3083782
$150,14 Unit Price incl. VAT
13
CRANKSHAFT #2
3083579
$647,84 Unit Price incl. VAT
14
CRANKSHAFT #1
3083578
Not Available
14
CRANKSHAFT (Incl. 1-9)
3083577
$1 243,19 Unit Price incl. VAT
15
KEY
3081447
Not Available
16
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
17
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
