1
Engine displacement
800
2
Year
2003
3
Trim
800 XC SP EDGE
4
Parts Catalog

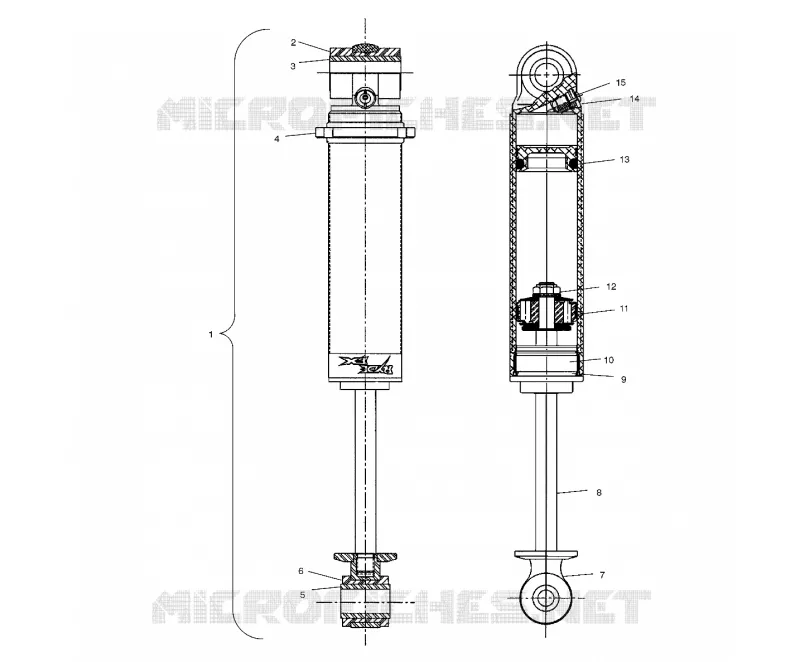

SHOCK (FRONT TRACK)(EDGE)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM (EDGE)
by
SHOCK (REAR TRACK)(EDGE)
SHOCK (FRONT TRACK)(EDGE)
1
SHOCK-F/T IFP ARVIN
7041975
Not Available
2
BUSHING
1700074
Not Available
3
SLEEVE-.57#IDX.80#ODX1.68
1700071
$27,29 Unit Price incl. VAT
4
SPRING RET NUT
1700033
Not Available
5
SLEEVE
1700069
$27,29 Unit Price incl. VAT
6
BUSHING
1700075
$20,99 Unit Price incl. VAT
7
UPPER MOUNT
1700010
Not Available
8
SHAFT-1/2#DIAX6.10#L
1700026
Not Available
9
CYL-HEAD O-RING (10)
1700051
Not Available
10
ASM. CYLINDER HEAD
1700156
Not Available
11
WASHER TOP-OUT
1700077
$18,89 Unit Price incl. VAT
11
PISTON BANDED
1700103
Not Available
11
BAND WEAR
1700031
$62,99 Unit Price incl. VAT
11
WASHER BACK-UP
1700078
$17,84 Unit Price incl. VAT
12
NUT
1700057
$17,84 Unit Price incl. VAT
13
IFP
1700023
$73,07 Unit Price incl. VAT
13
O-RING IFP
1700048
$19,94 Unit Price incl. VAT
13
IFP WEAR BAND
1700032
Not Available
14
PRESS-VALVE ASSY
1700076
Not Available
15
VALVE SCREW (10)
1700056
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
