FRONT BRAKE
5

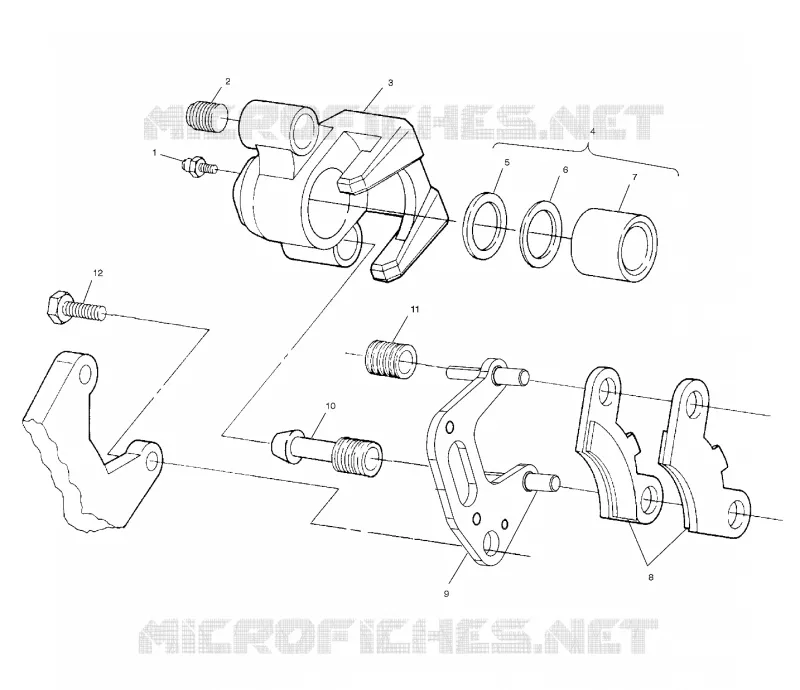

Parts Diagram
Parts Catalog
TOOL KIT
by
CONTROLS
FRONT BRAKE
-
-
1
2
3
3
3
3
3
3
3
3
3
4
5
6
7
8
8
8
8
8
8
8
8
8
9
9
9
9
10
11
12
-
-
1
2
3
3
3
3
3
3
3
3
3
4
5
6
7
8
8
8
8
8
8
8
8
8
9
9
9
9
10
11
12
-
-
1
2
3
3
3
3
3
3
3
3
3
4
5
6
7
8
8
8
8
8
8
8
8
8
9
9
9
9
10
11
12
-
-
1
2
3
3
3
3
3
3
3
3
3
4
5
6
7
8
8
8
8
8
8
8
8
8
9
9
9
9
10
11
12
-
CALIPER BR FR LH. (Incl. 1-11)(After 5/03/99)
1910309
$488,24 Unit Price incl. VAT
-
CALIPER BR FR RH. (Incl. 1-11)(After 5/03/99)
1910310
$488,24 Unit Price incl. VAT
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
CALIPER LH BRAKE MACH. Substituted by 5131261 (Use w/1910234 1910309)
5131115
$262,49 Unit Price incl. VAT
3
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
3
CALIPER RH BRAKE MACH. Substituted by 5131262 (Use w/1910235 1910310)
5131116
5133880
$262,49 Unit Price incl. VAT
4
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
5
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
6
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
7
PISTON-BRAKE LONG Substituted by 1930665
5132294
1930665
$104,99 Unit Price incl. VAT
8
KIT FR.BRAKEPAD HVY.DUTY (Complete set of 2 pads)
2200901
$98,16 Unit Price incl. VAT
8
KIT BRAKEPAD FRONT (Complete set of 2 pads)
2200465
$83,99 Unit Price incl. VAT
8
KIT BRAKEPAD FR (ATV)
2201149
$98,16 Unit Price incl. VAT
9
MOUNT ASM CALIPER (After 7/09/99)
1910411
1910513
$99,74 Unit Price incl. VAT
9
MT FR.CALIPER ASM. Substituted by 1910411 (Before 7/09/99)
1910299
1910513
$99,74 Unit Price incl. VAT
10
BOOT BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
11
BOOT PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
