1
Engine displacement
800
2
Year
2012
3
Trim
SPORTSMAN 800 EFI - A12MH76AD/AX/AZ
4
Parts Catalog
CLUTCH COVER
5
Parts Diagram
Parts Catalog
FRONT STORAGE BOX
by
DECALS

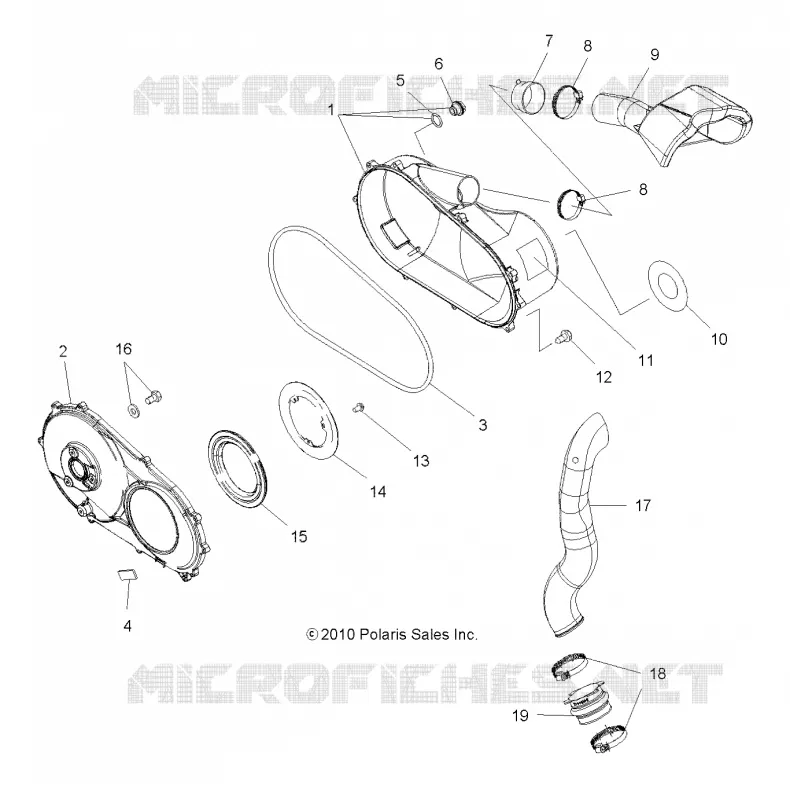

CLUTCH COVER
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
17
18
19
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
ASM. CLUTCH COVER OUTER [INCL. 16 17]
2633926
$346,49 Unit Price incl. VAT
2
Asm. Clutch Cover Inner [Incl. 14]
2633081
$220,49 Unit Price incl. VAT
3
SEAL COVER CLUTCH OUTER [TO 9/15/2021]
5521738
5526450
$78,74 Unit Price incl. VAT
4
Stopper Rubber
5412675
$15,74 Unit Price incl. VAT
5
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
6
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
7
Boot Duct Hi-Flow
5412636
$47,24 Unit Price incl. VAT
8
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
9
Duct Clutch Outlet
5438818
$299,24 Unit Price incl. VAT
10
Decal Automatic Transmission
7172746
Not Available
11
DECAL WARNING CLUTCH COVER
7172563
Not Available
12
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
13
SCR-M5X0.8X10 PHPN ZY L/W SEMS
7517867
$3,14 Unit Price incl. VAT
14
BRACKET RETAINER SEAL
5244527
$62,99 Unit Price incl. VAT
15
SEAL COVER CLUTCH INNER
5412635
$78,74 Unit Price incl. VAT
16
Asm. Screw and Washer [INCL. 15 &16]
7517599
$10,49 Unit Price incl. VAT
17
Duct Clutch Air Inlet
5439724
$262,49 Unit Price incl. VAT
17
Duct Clutch Air Inlet
5434044
$178,49 Unit Price incl. VAT
17
PLUG-HOLE .25 FLUSH (BPF-1/4)
5432952
$12,59 Unit Price incl. VAT
18
CLAMP HOSE S.S.(10)
7080451
$13,64 Unit Price incl. VAT
19
Boot Clutch Intake
5414021
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
