OIL PUMP AND WATER PUMP FOR RANGER 4X4 700 EFI CREW - R08WH68AG/AH/AK/AR FROM 2008

CYLINDER HEAD AND VALVES

PISTON CYLINDER

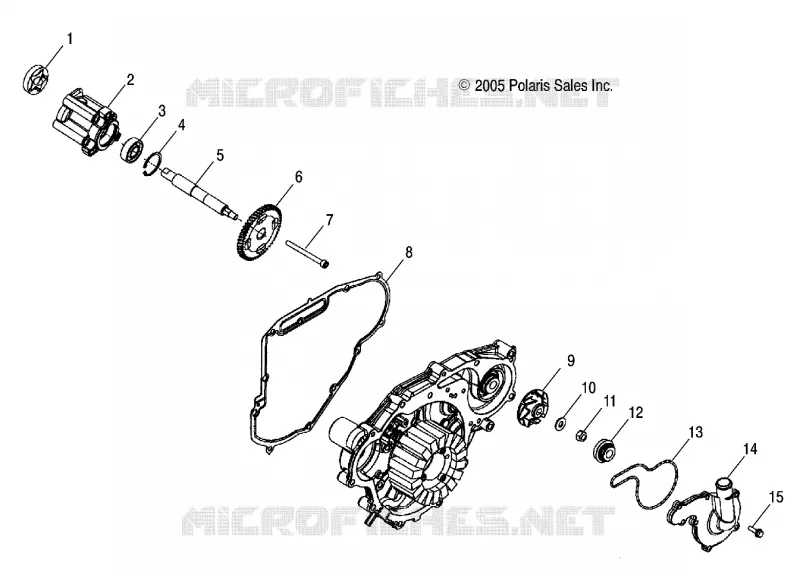

OIL PUMP AND WATER PUMP

-

KIT OIL PUMP [INCL. 1-6]

2203012

$356,99 Unit Price incl. VAT

1

Asm. Gerotor

1202588

$120,74 Unit Price incl. VAT

2

HOUSING OIL PUMP

5135094

$356,99 Unit Price incl. VAT

3

BEARING BALL

3514561

$16,79 Unit Price incl. VAT

4

RING RETAINING

7710531

$9,44 Unit Price incl. VAT

5

SHAFT OIL/WATER PUMP

5135650

$141,74 Unit Price incl. VAT

6

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

SCR-M6X1.0X70MM SOC/CAP-Y/D

7517807

$9,44 Unit Price incl. VAT

8

GASKET COVER MAG

5812936

$68,24 Unit Price incl. VAT

9

IMPELLER WATER PUMP

5433684

$57,74 Unit Price incl. VAT

10

WASHER

7555874

$4,19 Unit Price incl. VAT

11

NUT-HEX M8X1.25 NYLOCK-SS [S99CR]

7546804

$2,09 Unit Price incl. VAT

12

SEAL WATER PUMP

3610075

$131,24 Unit Price incl. VAT

13

SEAL WATER PUMP

5812571

$14,69 Unit Price incl. VAT

14

Cover Water Pump

5631882

Not Available

15

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
