1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN TOURING 570 EFI EPS MD
4
Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
by
DRIVE TRAIN, GEAR SELECTOR

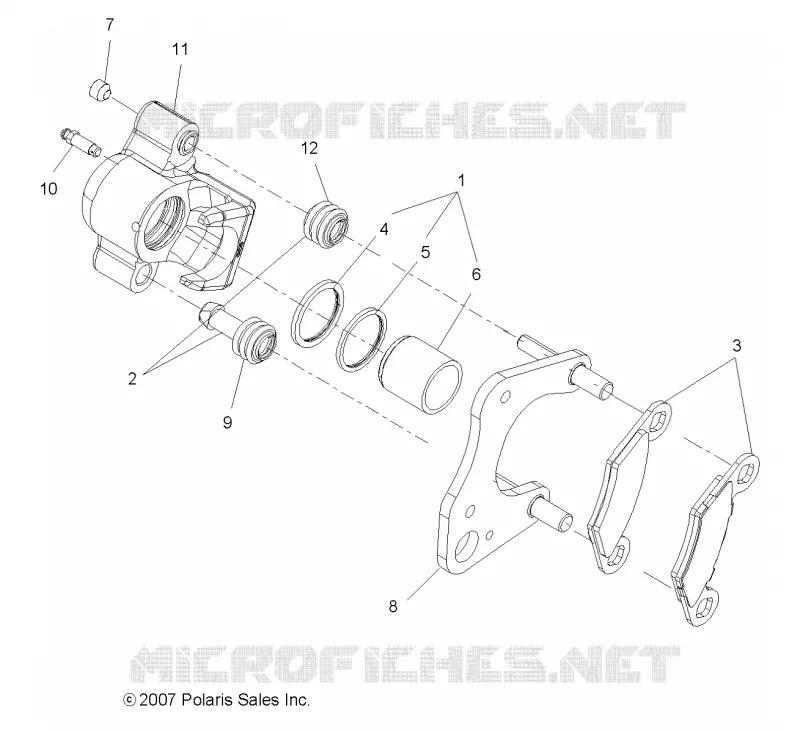

FRONT BRAKE CALIPER
-
-
1
2
3
4
5
6
7
8
9
10
11
11
12
-
Asm. Caliper Front LH [INCL. 1-10]
1911540
$488,24 Unit Price incl. VAT
-
Asm. Caliper Front RH [INCL. 1-10]
1911541
$488,24 Unit Price incl. VAT
1
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
2
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
3
KIT-BRAKE PAD ASM FRONT [INCL. 2 PADS]
2202412
$98,16 Unit Price incl. VAT
4
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
5
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
6
PISTON-BRAKE LONG Substituted by 1930665
5132294
1930665
$104,99 Unit Price incl. VAT
7
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
8
ASM-CALIPER MNT FRONT 1.500
1910513
$99,74 Unit Price incl. VAT
9
BOOT-PIN BUSHING
5412505
$6,29 Unit Price incl. VAT
10
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
BOOT-PIN SEAL
5412506
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
