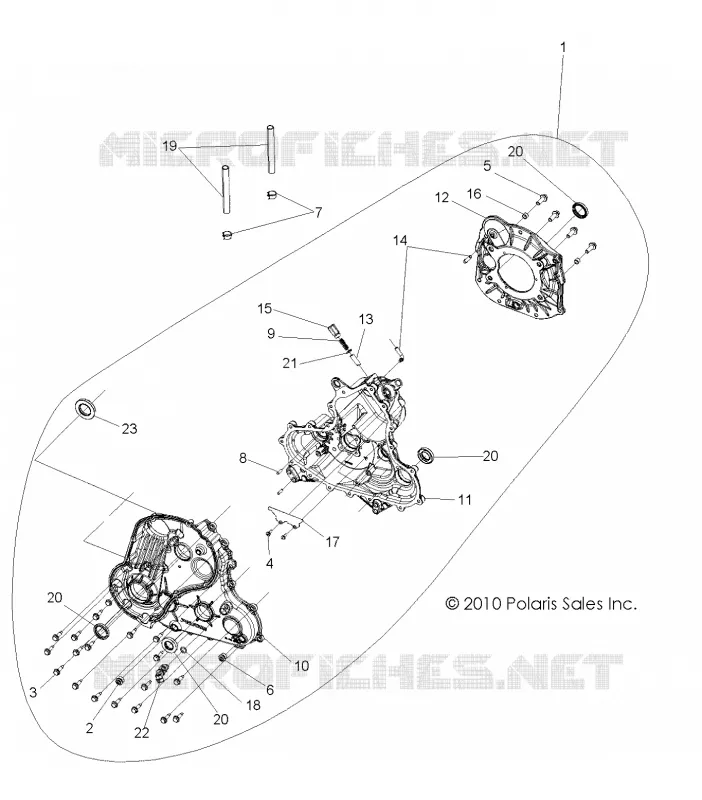

DRIVE TRAIN, MAIN GEARCASE FOR SCRAMBLER 850 FROM 2018

DRIVE TRAIN, MAIN GEARCASE

1

ASM. TRANSMISSION [INCL. ALL]

1332848

$4 866,74 Unit Price incl. VAT

2

PLUG-SOCKET HEAD W/MAG M18X1.5

3234756

$57,74 Unit Price incl. VAT

3

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

3234898

$17,84 Unit Price incl. VAT

4

SCREW 6-LOBE PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

5

SCREW HEX FLANGE HEAD M10 X 1.5 X 30

3234634

$25,19 Unit Price incl. VAT

6

PLUG SOCKET HEAD

3234755

$52,49 Unit Price incl. VAT

7

CLAMP-HOSE 17/32 GREEN

7081432

$7,34 Unit Price incl. VAT

8

PIN DOWEL 6 X 20

3234330

$13,64 Unit Price incl. VAT

9

SPRING COMPRESSION 0.45 OD X 1.58

3234790

$47,24 Unit Price incl. VAT

10

GEARCASE GTO COVER MACH

3234689

$692,99 Unit Price incl. VAT

11

GEARCASE MAIN GTO MACH

3235428

$593,24 Unit Price incl. VAT

12

BELLHOUSING MACH

3235196

$68,24 Unit Price incl. VAT

13

Bullet Detent

3234695

$68,24 Unit Price incl. VAT

14

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

15

Plug Detent

3234715

$68,24 Unit Price incl. VAT

16

PIPE KNOCK

3234765

$26,24 Unit Price incl. VAT

17

Deflector Oil

3234725

$26,24 Unit Price incl. VAT

18

O-RING

3234302

$13,64 Unit Price incl. VAT

19

FUEL LINE-1/4 ID (SVC) 600 CM [BULK]

8450040600

$136,49 Unit Price incl. VAT

20

SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON

3234892

$68,24 Unit Price incl. VAT

21

O-RING 0.53 I.D X 0.082 WIDE

3234729

$25,19 Unit Price incl. VAT

22

SENSOR-SPEED TRANS

4013908

$204,74 Unit Price incl. VAT

23

SEAL 35 X 62 X 8

3234769

$78,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
