1
Engine displacement
1000
2
Year
2022
3
Trim
GENERAL XP 1000 LE TROY LEE DESIGNS EDITION
4
Parts Catalog
ENGINE, WATERPUMP AND BYPASS
5
Parts Diagram
Parts Catalog
ENGINE, THROTTLE PEDAL
by
ENGINE, WATERPUMP ASSEMBLY

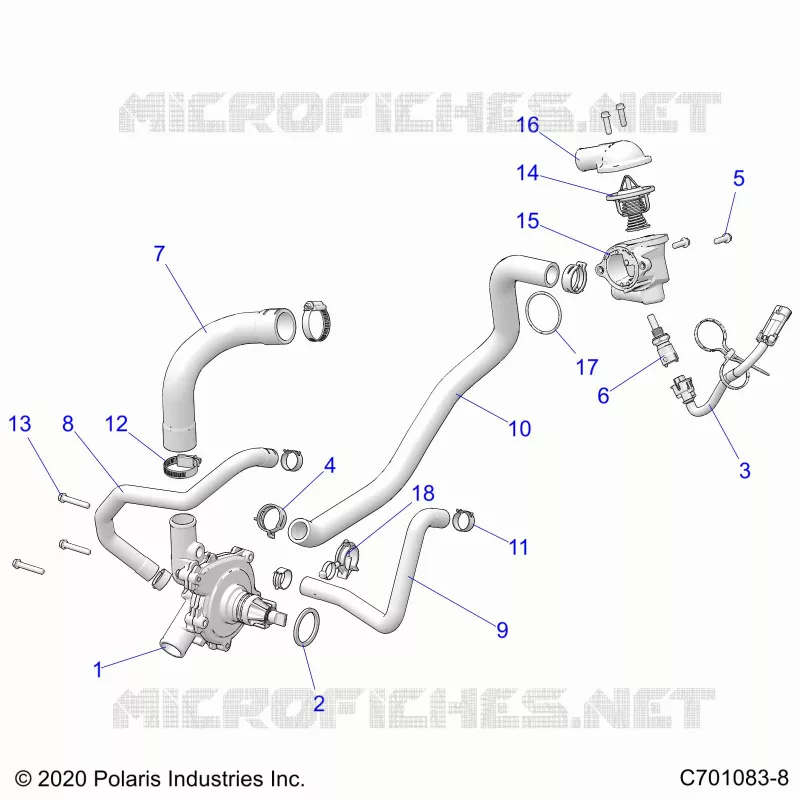

ENGINE, WATERPUMP AND BYPASS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
ASM WATERPUMP [FOR INTERNAL PARTS SEE ENGINE WATERPUMP ASSEMBLY]
1205014
$356,99 Unit Price incl. VAT
2
FILTER WATER PUMP
5814207
$4,19 Unit Price incl. VAT
3
WIRE THERMISTER LEAD
4014319
$152,24 Unit Price incl. VAT
4
CLAMP SPRINGBAND
7081970
$10,49 Unit Price incl. VAT
5
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
6
SENSOR-THERMISTER
4010644
$141,74 Unit Price incl. VAT
7
HOSE WATER PUMP OUT FORMED
5416305
$120,74 Unit Price incl. VAT
8
HOSE OIL COOLER OUTLET
5416752
$62,99 Unit Price incl. VAT
9
HOSE OIL COOLER IN
5416307
$29,39 Unit Price incl. VAT
10
HOSE BYPASS
5416629
$73,49 Unit Price incl. VAT
11
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
12
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
13
SCR-HXFL-M6X1.0X35 W/PATCHLOK
7519280
$9,44 Unit Price incl. VAT
14
THERMOSTAT DOUBLE ACTING 1MM
7052600
$83,99 Unit Price incl. VAT
15
HOUSING-THERMOSTAT MACH
5139853
$34,64 Unit Price incl. VAT
16
COVER THERMOSTAT CAST
5632421
$73,49 Unit Price incl. VAT
17
O-RING
5414591
$5,76 Unit Price incl. VAT
18
CLIP-OMEGA CABLE/19-24.5MM DIA
7082408
$23,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
