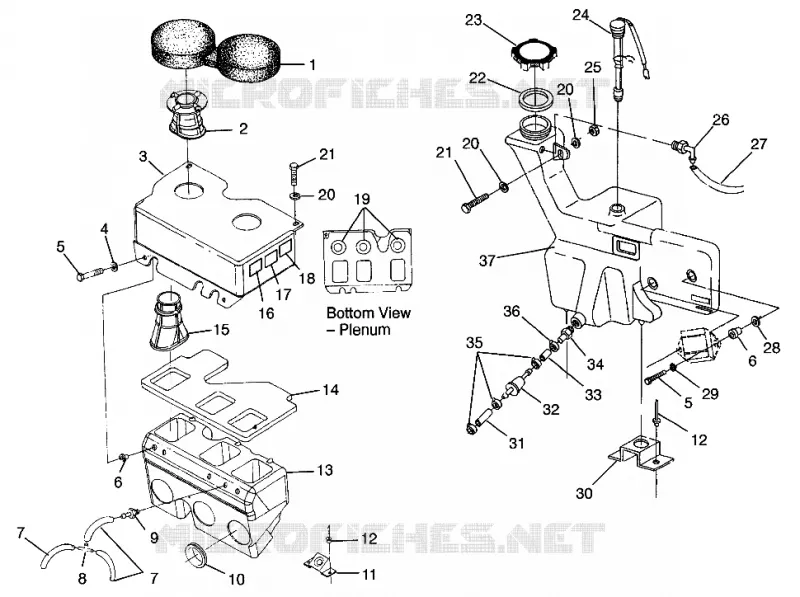

OIL TANK AIR BOX ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA (4931683168C007)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA RM (4931683168C002)
by
CRANKCASE ULTRA SKS 0960578, EURO ULTRA SKS E960578, AND ULTRA RMK 0960978 (4931683168C008)
OIL TANK AIR BOX ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, AND ULTRA (4931683168C007)
1
2
3
4
5
5
6
6
7
7
7
9
10
11
12
12
13
14
15
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
5
6
6
7
7
7
9
10
11
12
12
13
14
15
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
2
3
4
5
5
6
6
7
7
7
9
10
11
12
12
13
14
15
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
INTAKE ASM FOAM W/MESH Substituted by 1253178
1253131
Not Available
2
BOOT CONE SILENCER INLET
5411046
Not Available
3
PLENUM SILENCER (680) Substituted by 5432539
5432238
Not Available
4
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
5
SCREW
7512279
$1,56 Unit Price incl. VAT
6
NUT WELL
7541923
$10,49 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
Fitting
7052127
$6,29 Unit Price incl. VAT
10
BOOT
5410271
Not Available
11
BRKT OILTANK COINED
5241330
$3,45 Unit Price incl. VAT
12
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
13
BOTTOM AIRBOX INT.VENT(680)
5432127
Not Available
14
SEAL-PLENUM
5811214
Not Available
15
BOOT CONE SILENCER OUTLET
5411047
Not Available
16
DECAL AIR BOX CAUTION
7075351
Not Available
17
Decal Adjustable Driven Clutch
7073820
Not Available
18
DECAL GREASING
7073426
Not Available
19
RING SILENCER VELCRO
5830081
Not Available
20
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
21
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
22
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
23
CAP OIL TANK
5430779
$31,49 Unit Price incl. VAT
24
SENSOR OIL LEVEL
4110134
$141,74 Unit Price incl. VAT
25
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
26
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
27
DESC NOT_AVAILABLE
836000999
Not Available
28
BUSHING MACH.(10)
7558707
$9,44 Unit Price incl. VAT
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
30
BRKT OIL TANK
5240330
Not Available
31
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
32
FILTER
2530009
$12,59 Unit Price incl. VAT
33
LINE OIL FORMED
5410902
Not Available
34
FITTING 3/8 OUTLET
7052110
Not Available
35
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
36
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
37
TANK W/SEND.UNIT HOLE Substituted by 2200874
5432268
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
