1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU
4
Parts Catalog

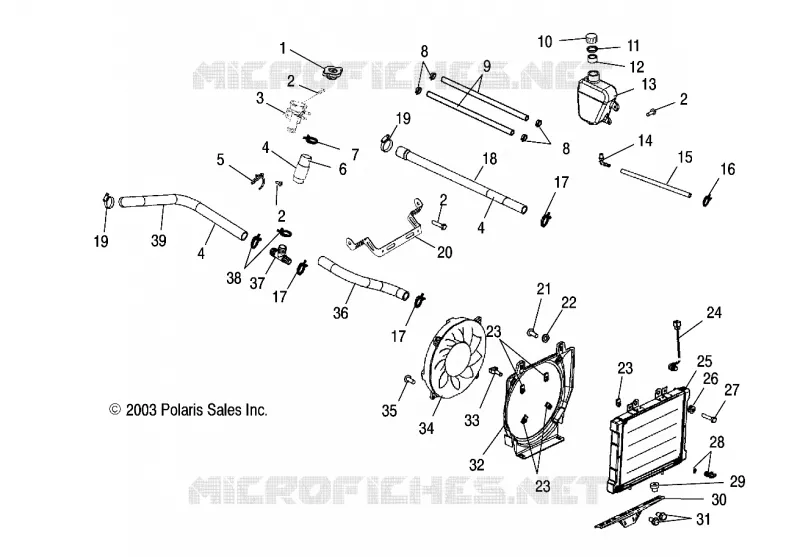

COOLING SYSTEM
5
Parts Diagram
Parts Catalog
REAR CAB, SEAT AND MAIN FRAME
by
EXHAUST SYSTEM
COOLING SYSTEM
1
2
2
2
2
3
4
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
17
18
19
19
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
36
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Cap Pressure
1240044
1240508
$89,24 Unit Price incl. VAT
2
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
3
Filler Remote
5435196
Not Available
4
Hose Guard
5521597
Not Available
5
Retainer Hose
7042089
$12,38 Unit Price incl. VAT
6
Hose Filler Neck
5412311
$62,99 Unit Price incl. VAT
7
Clamp [If built before 11/01/04]
7080827
7080843
$7,34 Unit Price incl. VAT
8
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
9
LINE FUEL [SVC]
8450040150
8450040-600
$136,49 Unit Price incl. VAT
10
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
11
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
12
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
13
TANK SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
14
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
15
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
16
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
17
Clamp Roto Clip
7080826
$9,44 Unit Price incl. VAT
18
Hose Engine Upper
5412391
$83,99 Unit Price incl. VAT
19
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
20
Bracket Radiator Mount Upper
5246656
Not Available
21
Screw
7518014
$7,86 Unit Price incl. VAT
22
Washer
7556196
$7,34 Unit Price incl. VAT
23
U-Clip
7547197
$11,01 Unit Price incl. VAT
24
Sensor Thermal w/Harness
4010161
$204,74 Unit Price incl. VAT
25
Radiator 15 FPI
1240190
1240521
$850,49 Unit Price incl. VAT
26
Asm. Grommet and Insert
5411975
$6,29 Unit Price incl. VAT
27
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
28
Valve Plastic Radiator/Cooler Drain
7052296
Not Available
29
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
30
Bracket Radiator Lower
5245773067
$220,49 Unit Price incl. VAT
31
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
32
Shroud Fan
5434853
$99,74 Unit Price incl. VAT
33
Clip Wiring
4010631
$14,16 Unit Price incl. VAT
34
FAN-11# ASSEMBLY ATV PKRD
2410413
$493,49 Unit Price incl. VAT
35
Screw
7517975
$10,49 Unit Price incl. VAT
36
Hose
5412585
$104,99 Unit Price incl. VAT
37
Connector Tee
7052342
7052373
$19,94 Unit Price incl. VAT
38
Clamp Rot Spring [If built between 11/01/04 and 11/12/04]
7081047
Not Available
39
Hose
5412585
$104,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
