1
Engine displacement
330
2
Year
2005
3
Trim
ATP 330 4X4 - A05JD32AA
4
Parts Catalog
WISHBONES
5

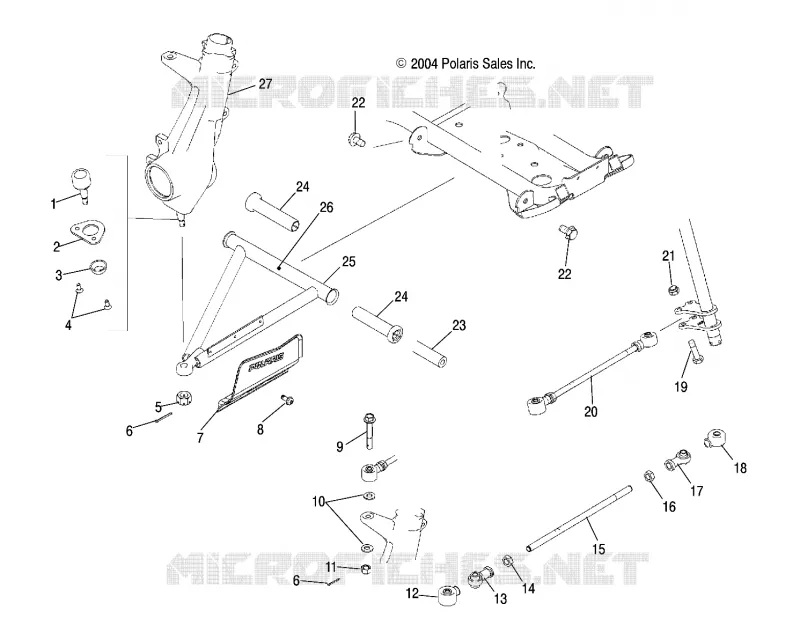

Parts Diagram
Parts Catalog
FRONT PROP SHAFT
by
HANDLEBAR
WISHBONES
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
25
26
27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
BALL-JOINT 52 DEG ATV (If built after 11/01/00)
7080927
7061306
$52,49 Unit Price incl. VAT
2
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
3
BOOT RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
4
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
5
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
6
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
7
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
7
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
8
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
9
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
10
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
11
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
12
BOOT SEAL ROD END
5411920
5412929
$20,99 Unit Price incl. VAT
13
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
14
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
15
Tie Rod
5020926
$83,99 Unit Price incl. VAT
16
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
17
Rod End
7061034
7061139
$115,49 Unit Price incl. VAT
18
Boot Seal Rod End
5411291
5412928
$20,99 Unit Price incl. VAT
19
SCREW
7515415
$2,09 Unit Price incl. VAT
20
Asm. Tie Rod [Incl. 3-9]
1820805
1822852
$246,74 Unit Price incl. VAT
21
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
22
Bolt Hex Flange
7518364
$3,14 Unit Price incl. VAT
23
Shaft A-Arm
5133806
$52,49 Unit Price incl. VAT
24
Bushing A-Arm Long
5434551
5436973
$9,44 Unit Price incl. VAT
25
Kit A-Frame RH [Incl. 13 22 23 25 26]
2202281
$272,99 Unit Price incl. VAT
25
Kit A-Frame LH [Incl. 13 22 23 25 26]
2202280
$272,99 Unit Price incl. VAT
26
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
