1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48"
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS- A20SXD95AG
5

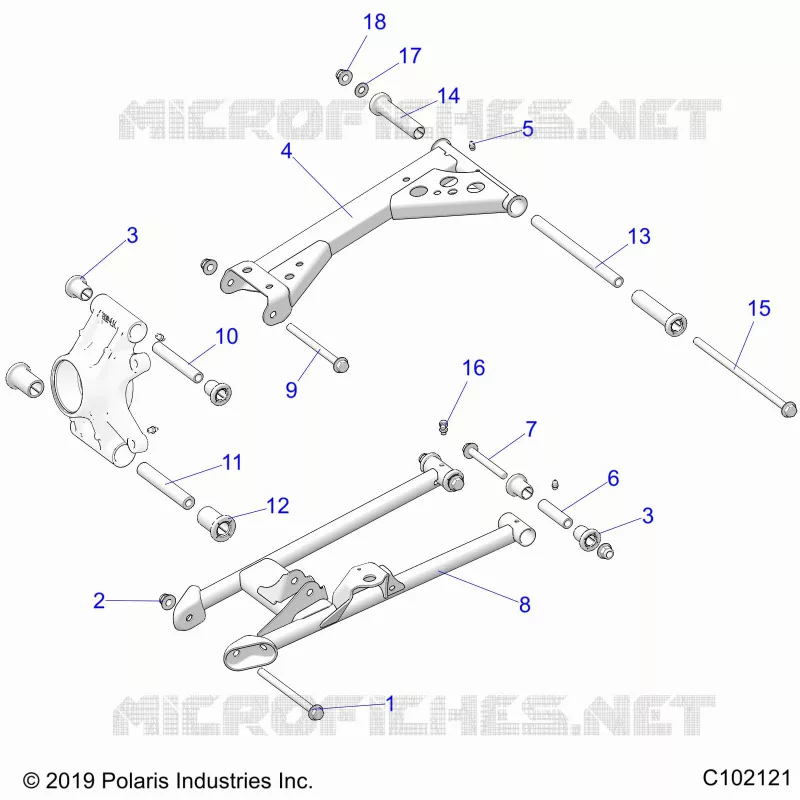

Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
DECALSS
REAR SUSPENSION CONTROL ARMS- A20SXD95AG
3
3
4
4
4
4
5
5
6
6
7
7
8
8
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
1
SCR-HXFL-M10X1.5X140 8.8 ZY3
7518467
$10,49 Unit Price incl. VAT
2
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
3
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
4
WELD-UCA REAR RH BLK
1025620067
$157,49 Unit Price incl. VAT
4
WELD-UCA REAR LH BLK
1025619067
$157,49 Unit Price incl. VAT
5
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
6
SHAFT A-ARM 63.5MM
5137346
$31,49 Unit Price incl. VAT
7
SCR-HXFL-M10X1.5X85 8.8 ZY3
7518466
$9,44 Unit Price incl. VAT
8
ARM CONTROL LOWER REAR LH BLACK
1019410067
$188,99 Unit Price incl. VAT
8
ARM CONTROL LOWER REAR RH BLACK
1019411067
$188,99 Unit Price incl. VAT
9
BOLT FLANGE
7518675
$10,49 Unit Price incl. VAT
10
SHAFT PIVOT
5137590
$16,79 Unit Price incl. VAT
11
SHAFT A-ARM LOWER CONTROL ARM [TO 8/2/2023]
5136473
5145086
$68,24 Unit Price incl. VAT
12
BUSHING LOWER CONTROL ARM
5437651
$12,59 Unit Price incl. VAT
13
SHAFT-PIVOT 210.27MM ZINC YEL
5137594
$16,79 Unit Price incl. VAT
14
BUSHING-A-ARM LONG 102.36MM
5436973
$9,44 Unit Price incl. VAT
15
SCR-HXFL-M10X1.25X235 10.9 ZOD
7519086
$52,49 Unit Price incl. VAT
16
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
17
WASHER
7556153
$3,66 Unit Price incl. VAT
18
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
