1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EPS ZUG
4
Parts Catalog

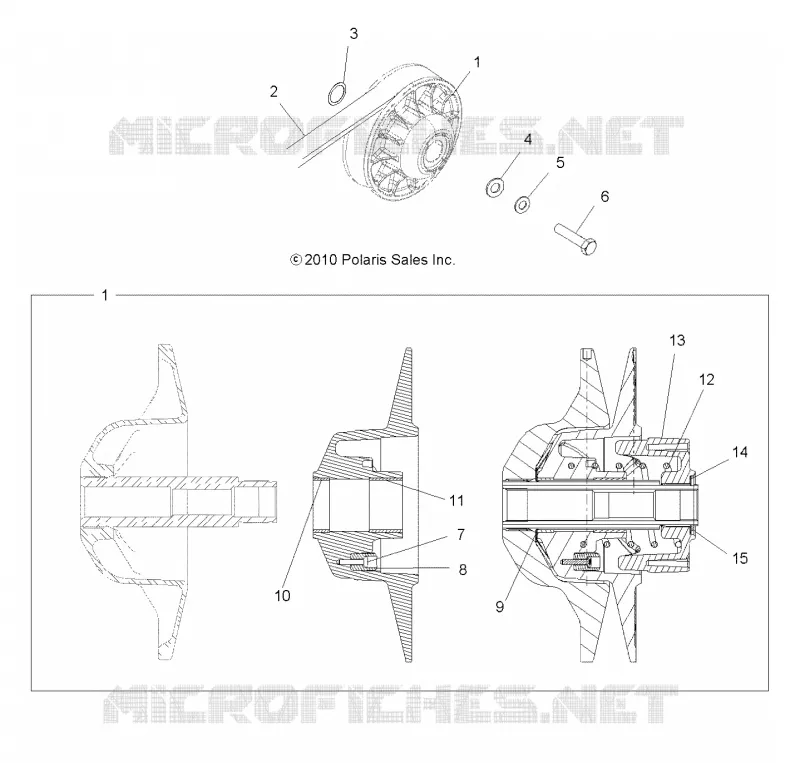

DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
by
ELECTRICAL, BULBS
DRIVE TRAIN, SECONDARY CLUTCH
1
ASM. DRIVEN CLUTCH BLACK [INCL. 7-15]
1322960
$614,24 Unit Price incl. VAT
2
BELT DRIVE EBS
3211113
$128,09 Unit Price incl. VAT
3
BUSHING-.906 X 1 3/8 X 16 GA-Y
7556120
$2,09 Unit Price incl. VAT
3
WASHER-.906 X 1.38 X 22 GA
7556454
$8,39 Unit Price incl. VAT
3
BUSHING 7 GAUGE
7556813
$9,44 Unit Price incl. VAT
4
WASHER DOMED SMALL
5250562
$4,19 Unit Price incl. VAT
5
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
6
BOLT(10)
7515327
$10,49 Unit Price incl. VAT
7
BOLT
7520176
$7,34 Unit Price incl. VAT
8
BUTTON
5450873
$11,54 Unit Price incl. VAT
9
Washer .030
7556804
$1,56 Unit Price incl. VAT
9
Washer .025
7556076
$9,44 Unit Price incl. VAT
9
Washer .020
7555898
$2,09 Unit Price incl. VAT
10
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
11
Bearing Moveable 1 Inch
3576511
$52,49 Unit Price incl. VAT
12
SPRING-CLTCH CHRM SLCN BLK DRI
7041782
$115,49 Unit Price incl. VAT
13
RAMP STA COMP (MACH)
5132344
$146,99 Unit Price incl. VAT
14
SPACER-1.350X1.750X.020-YW/TAB
5244116
$13,64 Unit Price incl. VAT
15
Ring Retaining
7710448
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
