1
Engine displacement
1000
2
Year
2018
3
Trim
RANGER CREW XP 1000 EPS MD
4
Parts Catalog

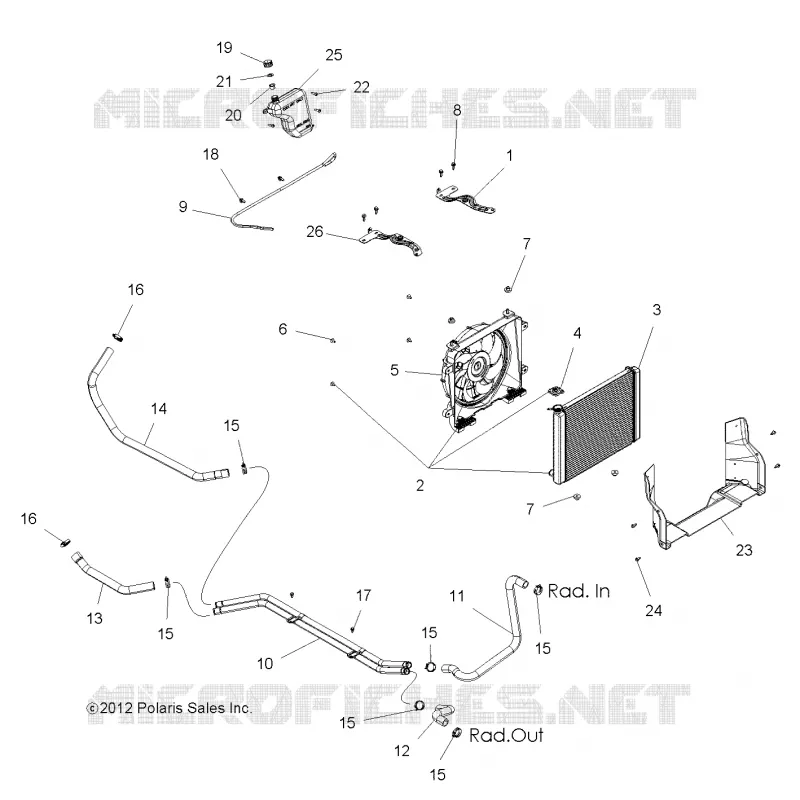

ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND TENSIONER
by
ENGINE, THROTTLE PEDAL
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
7
17
9
10
11
12
13
14
15
15
15
15
15
15
16
16
17
18
19
20
21
22
23
24
25
26
1
MOUNT RADIATOR LH BLACK
5256596329
$89,24 Unit Price incl. VAT
2
ASM-RADIATOR [INCL. 2-5]
1240663
$1 244,24 Unit Price incl. VAT
3
ASM-RADIATOR CORE
1240664
$876,74 Unit Price incl. VAT
4
CAP
1240694
$73,49 Unit Price incl. VAT
5
FAN-ASSEMBLY
2411816
$645,74 Unit Price incl. VAT
6
BOLT M6X15MM
7519585
$17,84 Unit Price incl. VAT
7
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
8
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
9
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
10
TUBE-COOLANT CREW 1#
5141638
$115,49 Unit Price incl. VAT
11
HOSE UPPER RADIATOR
5414289
$167,99 Unit Price incl. VAT
12
HOSE LOWER RADIATOR
5414290
$83,99 Unit Price incl. VAT
13
HOSE ENGINE IN
5414291
$83,99 Unit Price incl. VAT
14
HOSE ENGINE OUT
5414292
$141,74 Unit Price incl. VAT
15
SPRINGBAND-CLAMP 35/12 BLK
7080844
$19,94 Unit Price incl. VAT
16
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
17
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
18
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
19
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
20
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
21
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
22
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
23
SHROUD-RADIATOR FRONT BLK
5454760070
$115,49 Unit Price incl. VAT
24
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
25
TANK-SURGE
5439202
$178,49 Unit Price incl. VAT
26
MOUNT RADIATOR RH BLACK
5256597329
$89,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
