1
Engine displacement
780
2
Year
1996
3
Trim
SL 780 - B964087
4
Parts Catalog
BILGE PUMP SL 780 B964087 AND INTL. SL 780 I964087 (4935523552B009)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM SL 780 B964087 AND INTL. SL 780 I964087 (4935523552B008)
by
WATER SIPHON SL 780 B964087 AND INTL. SL 780 I964087 (4935523552B010)

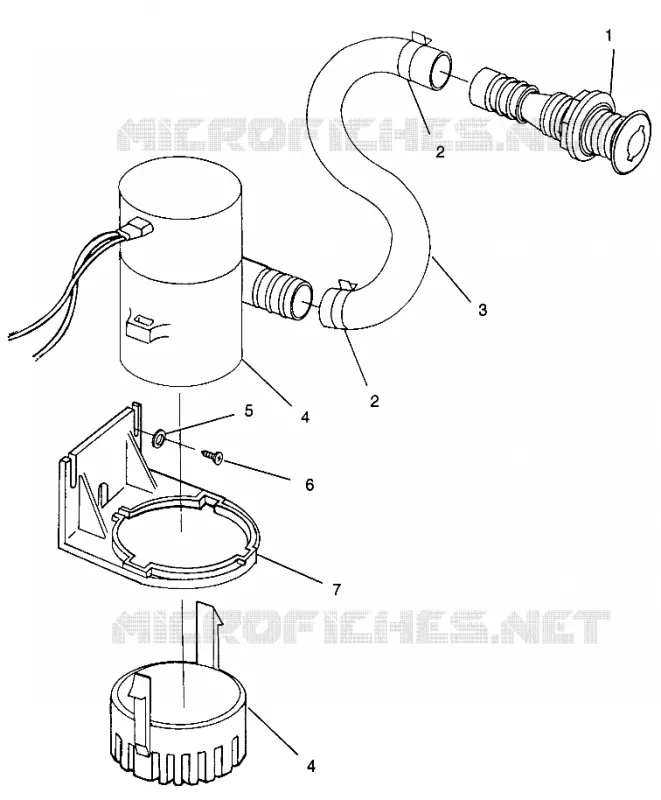

BILGE PUMP SL 780 B964087 AND INTL. SL 780 I964087 (4935523552B009)
1
2
2
3
4
4
5
6
7
1
FITTING THRU HULL WATER Substituted by 5431444-133
5431444
Not Available
2
CLAMP S.S.(10)
7080470
Not Available
3
HOSE 81CM
845005581
Not Available
4
PUMP BILGE Substituted by 2871237
2410035
Not Available
5
WASHER FLAT(10)
7555869
Not Available
6
SCREW(10)
7511870
Not Available
7
BRACKET MTG.
5431889
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
