SHOCK COMPRESSION DAMPING RESERVOIR (EDGE)
5
Parts Diagram
Parts Catalog
SHOCK AND RESERVOIR (REAR TRACK)(EDGE)
by
CHAINCASE

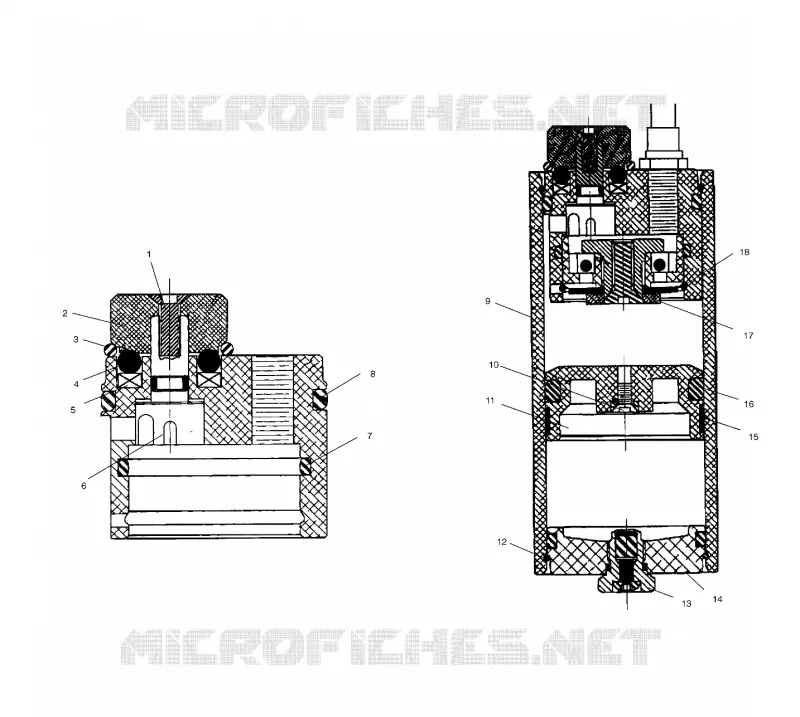

SHOCK COMPRESSION DAMPING RESERVOIR (EDGE)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-
RESERVOIR ASM W/GROOVE [No Longer Available] (Incl. 1-17)
1500329
Not Available
-
HOUSING (Incl. 1-8)
1500263
$165,36 Unit Price incl. VAT
1
SCREW
1500223
Not Available
2
KNOB-DAMP ADJUST
1500224
Not Available
3
O-RING
1500253
$1,67 Unit Price incl. VAT
4
BALL-AIR VALVE
1500226
Not Available
5
SPRING-AIR VALVE
1500225
Not Available
6
DRUM COMP.
1500254
$65,40 Unit Price incl. VAT
7
O-RING
1500227
$1,67 Unit Price incl. VAT
8
SEAL O-RING
1500228
Not Available
9
RESERVOIR W/GROOVE [No Longer Available]
1500325
Not Available
10
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE
1500161
$68,24 Unit Price incl. VAT
11
PISTON FLOAT ASM.
1500235
$79,47 Unit Price incl. VAT
12
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
$17,84 Unit Price incl. VAT
13
SCREW Substituted by 1500019
1500232
$11,54 Unit Price incl. VAT
14
RES.END CAP ASM.
1500231
Not Available
15
BEARING EXTERNAL
1500230
$54,59 Unit Price incl. VAT
16
SEAL O-RING
1500229
Not Available
17
PLATE DAMPING 4-HOLE
1500324
Not Available
18
RING RETAINING
1500233
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
