Parts Catalog
ENGINE, STARTING MOTOR
5

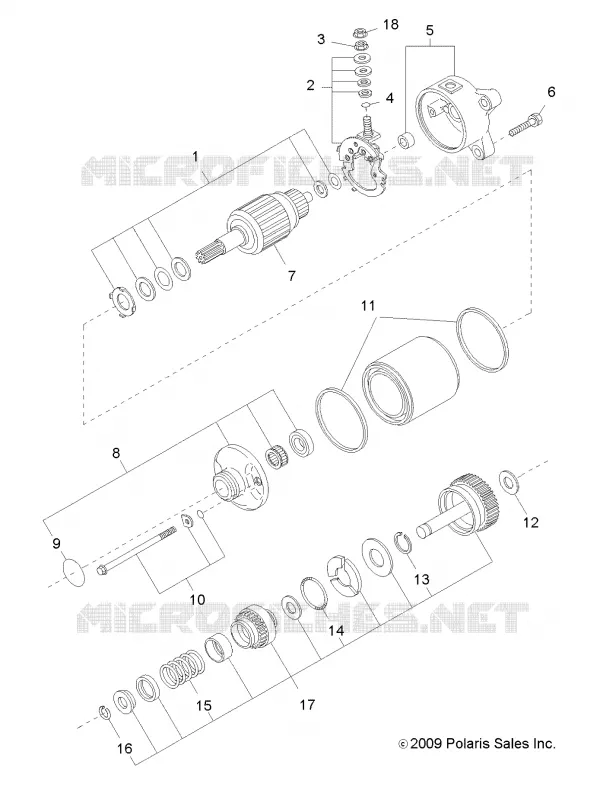

Parts Diagram
Parts Catalog
OIL TANK
by
THROTTLE BODY
ENGINE, STARTING MOTOR
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-
Motor Starter Complete [Incl. 1-5 7-11]
3090188
$621,59 Unit Price incl. VAT
1
WASHER SET
3084982
Not Available
2
Brush Set Carbon
3088169
$230,99 Unit Price incl. VAT
3
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
4
O-RING
3084408
Not Available
5
COVER REAR STARTER(MAGNUM)
3085034
$173,24 Unit Price incl. VAT
6
Bolt Flange
3084874
Not Available
7
ARMATURE ASM.
3085353
Not Available
8
COVER FRT STARTER(MAGNUM) * (Incl. 10)
3085033
$272,99 Unit Price incl. VAT
9
O-RING
3240114
$10,49 Unit Price incl. VAT
10
BOLT ASM SET (Incl. 6)
3084983
$41,99 Unit Price incl. VAT
11
RING RUBBER
3084405
Not Available
12
Washer
3240134
7556994
$6,29 Unit Price incl. VAT
13
CLIP
3084412
$17,84 Unit Price incl. VAT
14
SPRING WEIGHT
3084411
$25,08 Unit Price incl. VAT
15
SPRING RETURN
3084410
$3,98 Unit Price incl. VAT
16
CLIP
3084409
$13,64 Unit Price incl. VAT
17
Asm. Gear Shaft [Incl. 13-16]
3090034
$456,74 Unit Price incl. VAT
18
NUT FLANGE
3083856
$4,19 Unit Price incl. VAT
