1
Engine displacement
500
2
Year
2011
3
Trim
500 WIDETRAK LX
4
Parts Catalog
OIL PUMP
5

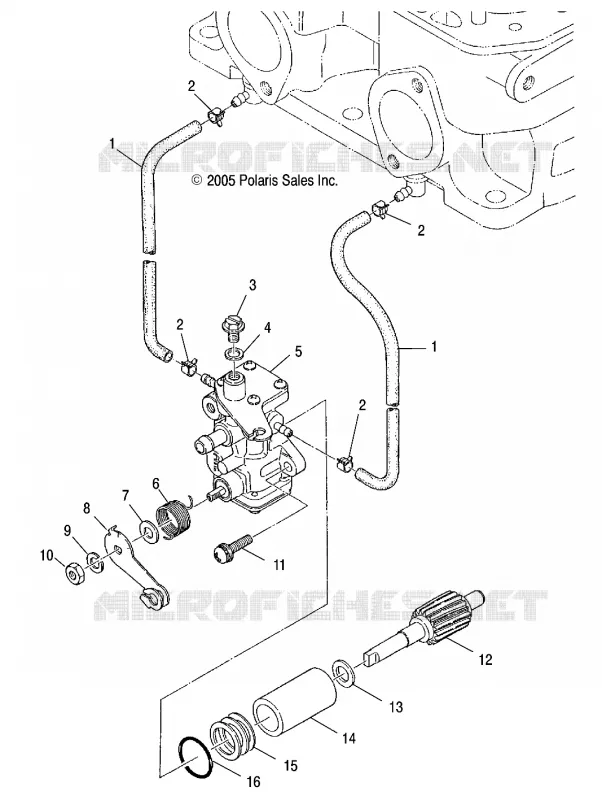

Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
OIL TANK
OIL PUMP
1
PIPE 3 VINYL (140 mm)
3085591
Not Available
1
Vinyl Pipe 2 Compl.
3085471
Not Available
2
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
3
SCREW-AIR VENT
3083125
Not Available
4
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
5
PUMP OIL (Incl. 2-9)
3084013
Not Available
6
Spring Return
3087210
Not Available
7
COLLAR CAM SHAFT
3083445
$4,19 Unit Price incl. VAT
8
LEVER CONTROL
3084014
Not Available
9
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
10
NUT
3083120
$6,29 Unit Price incl. VAT
11
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
12
GEAR
3090198
5141635
$141,74 Unit Price incl. VAT
13
SPACER
3083130
$3,14 Unit Price incl. VAT
14
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
15
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
15
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
15
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
16
O RING
3083127
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
