CRANKSHAFT AND PISTON FOR GENESIS I - W035098CA/W035098IA FROM 2003

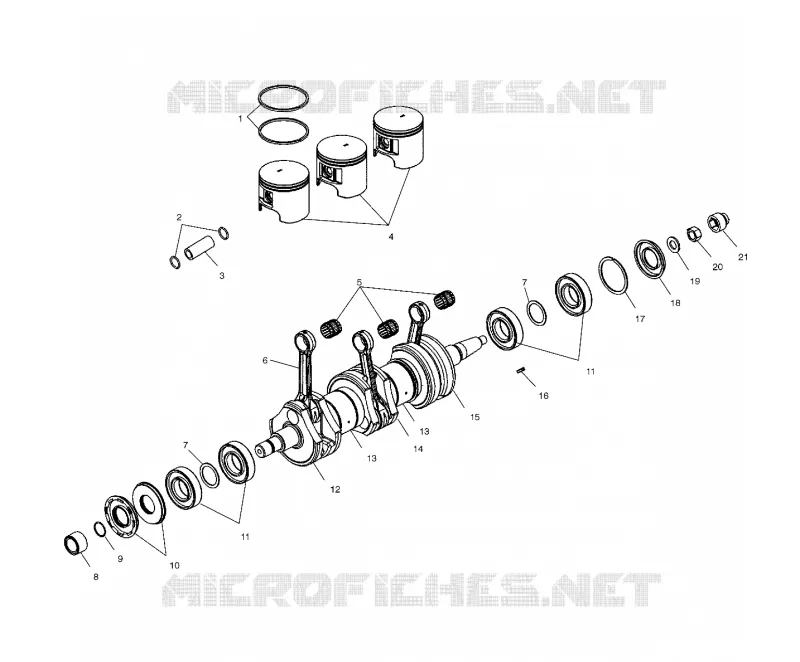

CRANKSHAFT AND PISTON

-

CRANKSHAFT ASM 1200 TRIPLE (Incl. 8 13-17)

2201444

Not Available

1

RING KIT 84MM.STD (Standard)

2201449

Not Available

1

RING KIT 84MM.25 O/S (.25mm O/S)

2201450

$125,99 Unit Price incl. VAT

1

RING KIT 84MM.50 O/S (.50mm O/S)

2201451

Not Available

2

CIRCLIP PISTON 22MM(2)

3023031

Not Available

3

PIN PISTON Substituted by 3021164

3023030

$26,45 Unit Price incl. VAT

4

PSTN 84MM PWC.50 NTRD PIN (.50mm O/S) (Incl. 1 2 4)

2201708

Not Available

4

PST 84MM PWC STD NTRD PIN (Std.)(Incl.1 2 4)

2201706

$238,34 Unit Price incl. VAT

4

PSTN 84MM PWC.25 NTRD PIN (.25mm O/S) (Incl.1 2 4)

2201707

Not Available

5

BEARING 17NDL PSTNPIN.

3552112

Not Available

5

BEARING-17-22X27X25 PNPIN KOYO [INCL.5 7 10-12]

3514357

$40,94 Unit Price incl. VAT

6

CONNE ROD KIT ASM.

2201445

Not Available

7

BUSHING(10)

7555905

$6,29 Unit Price incl. VAT

8

COLLAR CRANKSHAFT

5131195

Not Available

9

O-RING

5410613

$3,66 Unit Price incl. VAT

10

Seal Flange

5412091

$41,99 Unit Price incl. VAT

11

BEARING BALL [PTO END]

3585503

$54,59 Unit Price incl. VAT

12

Desc not available [No Longer Available]

5131746

Not Available

13

LABYRINTH

5131086

Not Available

14

Desc not available [No Longer Available]

5131745

Not Available

15

Desc not available [No Longer Available]

5131744

Not Available

16

KEY WOODRUFF

7721117

$47,24 Unit Price incl. VAT

17

RING RETAINING (10)

7710441

Not Available

18

SEAL (Magneto)

3610044

$41,99 Unit Price incl. VAT

19

WASHER

7555907

$10,49 Unit Price incl. VAT

20

NUT

7546909

Not Available

21

COUPLER PUMP DRIVE

5432576

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
