1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB
4
Parts Catalog
CYLINDER
5

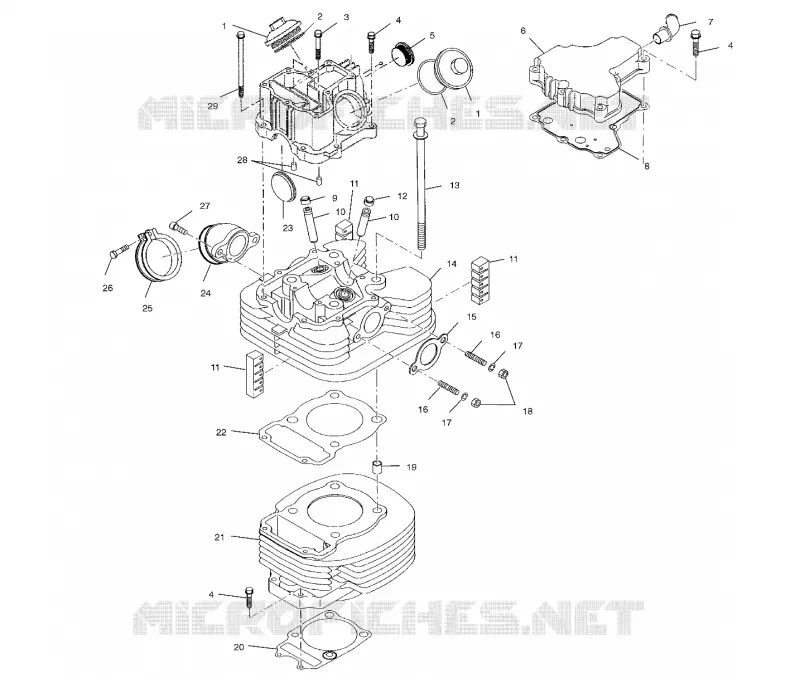

Parts Diagram
Parts Catalog
FRONT HOUSING
by
TOOL KIT
CYLINDER
1
1
2
2
3
4
4
4
5
6
7
8
9
10
10
11
11
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
4
4
4
5
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
18
1
Cover Valve
3087259
Not Available
2
O-RING
3086414
Not Available
3
BOLT FLANGE
3087159
$7,34 Unit Price incl. VAT
4
Bolt Flange
3087158
Not Available
5
PLUG CYLINDER BLOCK
3086417
Not Available
6
COVER-BREATHER
3087033
Not Available
7
PIPE
3085850
$99,74 Unit Price incl. VAT
8
GASKET-COVER
3087034
$52,49 Unit Price incl. VAT
9
SEAL INTAKE VALVE
3084858
$25,19 Unit Price incl. VAT
10
GUIDE VALVE
3084994
$83,99 Unit Price incl. VAT
11
FIN DAMPER A
3084798
$68,24 Unit Price incl. VAT
12
SEAL EXHAUST VALVE
3084859
$41,99 Unit Price incl. VAT
13
BOLT AND WASHER
3086418
$19,94 Unit Price incl. VAT
14
Asm. Cylinder Head [Incl. 3 4 12-14 15 17]
3087237
$904,04 Unit Price incl. VAT
15
GASKET-EXHAUST
3086421
Not Available
16
STUD (10)
3085326
Not Available
17
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
18
NUT Substituted by 3080285
3086787
Not Available
19
PIN STRAIGHT
3084838
Not Available
20
GASKET-CYLINDER
3086407
$57,74 Unit Price incl. VAT
21
Cylinder
3087236
$619,49 Unit Price incl. VAT
22
Gasket Head
3087238
$73,49 Unit Price incl. VAT
23
GASKET-CAM
3086416
Not Available
24
ADAPTER
3087050
$136,49 Unit Price incl. VAT
25
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
26
SCREW
3081497
$4,19 Unit Price incl. VAT
27
BOLT (SOCKET HEAD) Substituted by 3081330
3086786
$7,34 Unit Price incl. VAT
28
PIN STRAIGHT
3086410
Not Available
29
Bolt Flange
3087160
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
