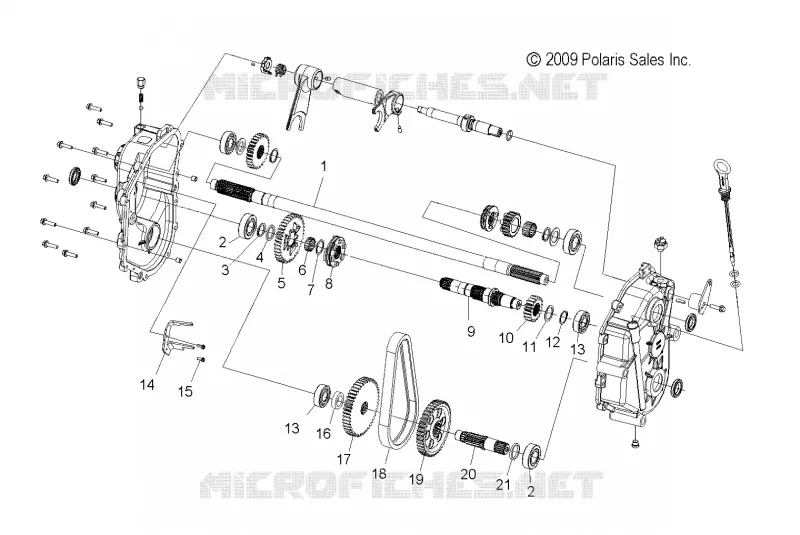

DRIVE TRAIN, GEARCASE (2 OF 2) FOR 600 WIDETRAK IQ FROM 2013

DRIVE TRAIN, GEARCASE (2 OF 2)

-

ASM. GEARCASE PERC [INCL. 1-21 AND ALL FROM DRIVE TRAIN GEARCASE [1 OF 2] PAGE.]

1332776

$4 058,24 Unit Price incl. VAT

1

JACKSHAFT

6230393

$608,99 Unit Price incl. VAT

2

BEARING W/O SEAL

3514304

$27,29 Unit Price incl. VAT

3

RING-RET BSC EXT.984X.906X.078

7710602

$6,29 Unit Price incl. VAT

4

WASHER THRUST

7556434

$18,89 Unit Price incl. VAT

5

GEAR 39T

3233511

$209,99 Unit Price incl. VAT

6

BEARING-NEEDLE CAGE

3514589

$11,54 Unit Price incl. VAT

7

WASHER THRUST

7556433

Not Available

8

DOG ENGAGEMENT L/R

3233512

$173,24 Unit Price incl. VAT

9

SHAFT REVERSE

3233514

$225,74 Unit Price incl. VAT

10

GEAR 18T

3233515

Not Available

11

WASHER

7556432

$9,44 Unit Price incl. VAT

12

RING RETAINING

7710603

$4,19 Unit Price incl. VAT

13

BEARING BALL

3514594

$11,54 Unit Price incl. VAT

14

DEFLECTOR OIL

5251122

$26,24 Unit Price incl. VAT

15

SCREW

7518784

$4,19 Unit Price incl. VAT

16

SPACER

5135973

$13,64 Unit Price incl. VAT

17

GEAR 47T

3233518

$257,24 Unit Price incl. VAT

18

Chain Hyvo 66P 3/4W TRACK 146X1.6#

3221113

$194,24 Unit Price incl. VAT

19

SPROCKET 41T [W/1.6IN. COBRA TRACK]

3222101

$73,49 Unit Price incl. VAT

20

SHAFT OUTPUT

3233521

$272,99 Unit Price incl. VAT

21

SPACER

5135972

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
