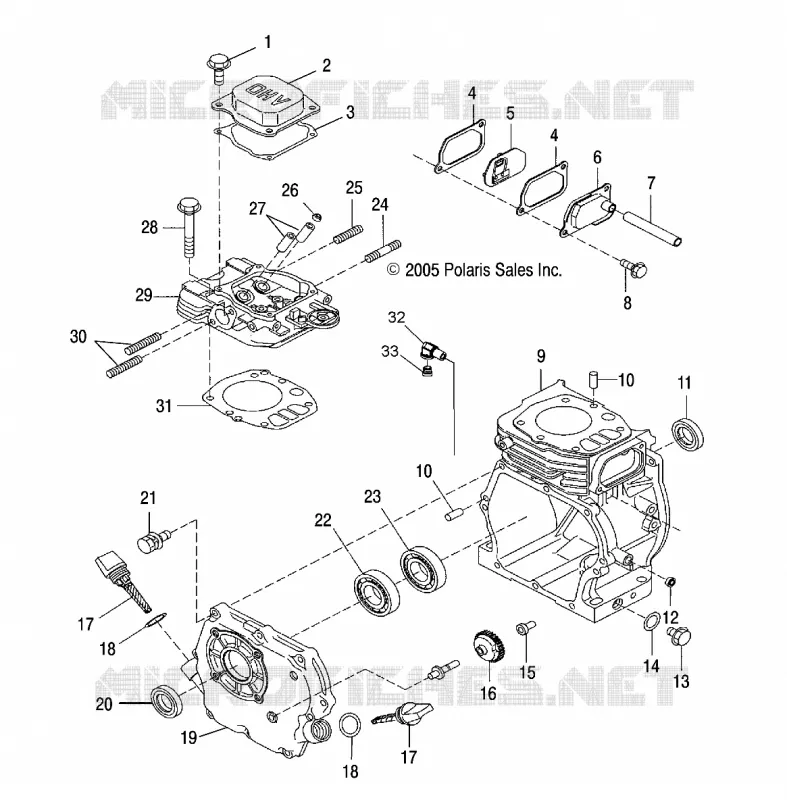

CRANKCASE
31
32
33
1
BOLT FLANGE
3087256
$7,34 Unit Price incl. VAT
2
COVER ROCKER
3086527
$83,99 Unit Price incl. VAT
3
GASKET ROCKER COVER
3089529
$52,49 Unit Price incl. VAT
4
GASKET BREATHER COVER
3086531
$15,74 Unit Price incl. VAT
5
ASM. PLATE BREATHER
3086530
$52,49 Unit Price incl. VAT
6
ASM. COVER BREATHER
3086529
$62,99 Unit Price incl. VAT
7
PIPE RUBBER
3086532
$52,49 Unit Price incl. VAT
8
BOLT FLANGE
3086125
$4,19 Unit Price incl. VAT
9
ASM. CRANKCASE [INCL. 10-12 23]
3087143
$535,49 Unit Price incl. VAT
10
PIN DOWEL
3086838
$13,64 Unit Price incl. VAT
11
SEAL OIL
3086510
$73,49 Unit Price incl. VAT
12
SEAL OIL
3087144
$17,84 Unit Price incl. VAT
13
PLUG
3086749
Not Available
14
GASKET
3082956
$9,44 Unit Price incl. VAT
15
SLEEVE GOVERNOR
3086518
$52,49 Unit Price incl. VAT
16
ASM. GEAR GOVERNOR
3086517
$157,49 Unit Price incl. VAT
17
GAUGE OIL
3086519
$62,99 Unit Price incl. VAT
18
GASKET
3086520
$15,74 Unit Price incl. VAT
19
ASM. COVER MAIN BEARING [INCL. 20 22]
3086966
$257,24 Unit Price incl. VAT
20
SEAL OIL
3086516
$62,99 Unit Price incl. VAT
21
ASM. BOLT AND WASHER
3086522
$6,29 Unit Price incl. VAT
22
BEARING BALL
3080108
$40,94 Unit Price incl. VAT
23
BEARING BALL
3086947
$34,64 Unit Price incl. VAT
24
STUD
3082934
$18,89 Unit Price incl. VAT
25
STUD
3086513
$6,29 Unit Price incl. VAT
26
SEAL STEM
3088202
$10,49 Unit Price incl. VAT
27
GUIDE VALVE
3086535
$73,49 Unit Price incl. VAT
28
BOLT FLANGE
3086526
$11,54 Unit Price incl. VAT
29
ASM. HEAD CYLINDER [INCL. 24-27 30]
3089422
$430,49 Unit Price incl. VAT
30
STUD
3086512
$6,29 Unit Price incl. VAT
31
GASKET ROCKER COVER
3089528
$57,74 Unit Price incl. VAT
32
Fitting
7052304
$73,49 Unit Price incl. VAT
33
PLUG
7052115
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
