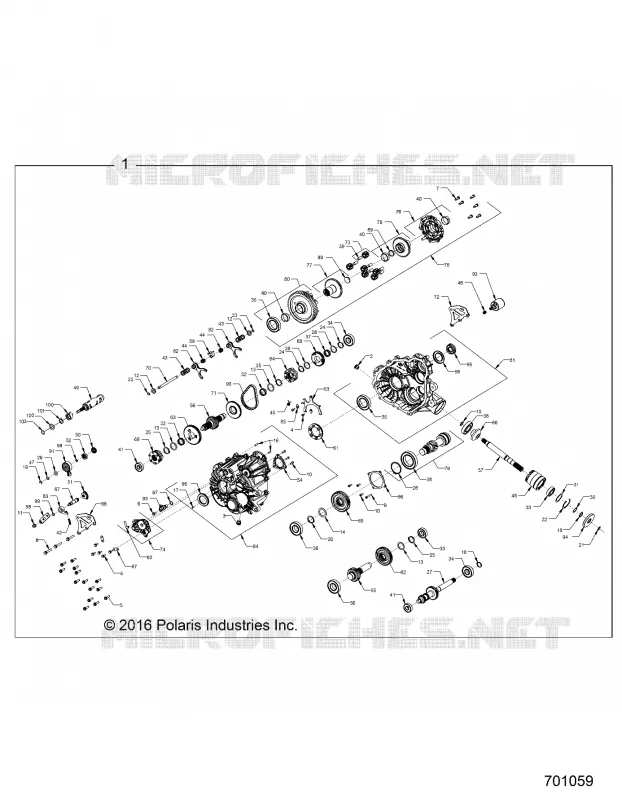

DRIVE TRAIN, MAIN GEARCASE INTERNALS FOR RANGER 1000 DIESEL CREW MD FROM 2018

1

ASM. GEARCASE DIESEL C RGR [INCL. ALL]

1333727

$6 488,99 Unit Price incl. VAT

2

PLUG SOCKET HEAD

3234755

$52,49 Unit Price incl. VAT

3

PLUG-SOCKET HEAD W/MAG M18X1.5

3234756

$57,74 Unit Price incl. VAT

4

SCREW 6-LOBE PAN HD M6 X 1 X 16

3234309

$13,64 Unit Price incl. VAT

5

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

3234898

$17,84 Unit Price incl. VAT

6

SCREW HEX FLANGE HEAD M6 X 1 X 20

3235206

$13,64 Unit Price incl. VAT

7

SCREW CAP HH M8 X 1.25 X 25

3235096

3236169

$17,84 Unit Price incl. VAT

8

SCREW HEX FLANGE M8 X 50

3235207

$19,94 Unit Price incl. VAT

9

SCREW SOCKET HEAD CAP M6 X 1.0 X 40

3235208

$20,99 Unit Price incl. VAT

10

SCREW SOCKET HEAD CAP M6 X 1.0 X 18

3235332

$7,34 Unit Price incl. VAT

11

NUT LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$14,69 Unit Price incl. VAT

12

WASHER CUP

3234091

$17,84 Unit Price incl. VAT

13

WASHER-32.3X42X1.5(115288)

3235211

$19,94 Unit Price incl. VAT

14

WASHER-35.6X57X1.5(115289)

3235212

$25,19 Unit Price incl. VAT

15

WASHER-17.3X25X1.5(115290)

3235213

$31,49 Unit Price incl. VAT

16

PIN DOWEL 6 X 20

3234330

$13,64 Unit Price incl. VAT

17

PIN SPRING SLOTTED 6 X 12

7043746

$15,74 Unit Price incl. VAT

18

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

19

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

20

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

21

RING RETAINING EXTERNAL SHR-66

3234318

$5,76 Unit Price incl. VAT

22

RING RETAINING BASIC INTERNAL 2.047

3234269

$17,84 Unit Price incl. VAT

23

RING RETAINING BASIC EXTERNAL 0.428

3234090

$19,94 Unit Price incl. VAT

24

RING RETAINING

3234205

$20,99 Unit Price incl. VAT

25

RING RETAINING BASIC EXTERNAL MSR-32

3235214

$17,84 Unit Price incl. VAT

26

RING-RETAIN VSH-237(130298)

3235216

$19,94 Unit Price incl. VAT

27

SHAFT BOSS LW UTILITY INPUT AVALANCHE

3235395

$346,49 Unit Price incl. VAT

28

WASHER THRUST 1.187 X 1.500 X .0600

3233378

$17,84 Unit Price incl. VAT

29

WASHER THRUST 0.446 X 0.88 X 0.025

3234642

$19,94 Unit Price incl. VAT

30

SHIM 1.180 OD X 0.995 ID

3234272

$68,24 Unit Price incl. VAT

31

SHIM 2.040 OD X 1.63 ID

3234273

$26,24 Unit Price incl. VAT

32

BEARING NEEDLE CAGE ASSY

3233014

$74,54 Unit Price incl. VAT

33

BEARING

3233019

$54,59 Unit Price incl. VAT

34

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

35

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

36

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

37

BEARING-NEEDLE 30X35X13-CAGED

3233384

$54,59 Unit Price incl. VAT

38

BEARING BALL 6012 C3 60 X 95 X 18

3235218

$101,84 Unit Price incl. VAT

39

BEARING PLAIN 10 X 12 X 25

3234239

$27,29 Unit Price incl. VAT

40

BEARING PLAIN 40 X 44 X 15

3234241

$27,29 Unit Price incl. VAT

41

BEARING BALL 6303 17 X 47 X 14

3234652

$27,29 Unit Price incl. VAT

42

SPRING COMPRESSION 0.36 O.D. X 1.125

3234578

$26,24 Unit Price incl. VAT

43

SPRING COMPRESSION .92 O.D. X 2.000

3234078

$47,24 Unit Price incl. VAT

44

SPRING COMPRESSION 0.46 I.D. X 0.73

3234089

$52,49 Unit Price incl. VAT

45

SPRING TORSION RETURN

3234276

$16,79 Unit Price incl. VAT

46

SPRING COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE

3234277

$26,24 Unit Price incl. VAT

47

WASHER-SPRING 210393

3235327

$17,84 Unit Price incl. VAT

48

TUBE SNORKEL MACHINED

3234278

$188,99 Unit Price incl. VAT

49

DRUM SHIFT MACH

3235984

$519,74 Unit Price incl. VAT

50

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

51

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

52

STAR DETENT

3235982

$68,24 Unit Price incl. VAT

53

FORK PIVOT SHIFT REAR DIFF

3235455

$173,24 Unit Price incl. VAT

54

PLATE PARK 12 FACE

3235456

$73,49 Unit Price incl. VAT

55

SHAFT-IDLER 29T(285803)

3235223

$204,74 Unit Price incl. VAT

56

SHAFT REVERS E 29T

3235224

$272,99 Unit Price incl. VAT

57

SHAFT-FRONT OUTPUT(285914)

3235394

$246,74 Unit Price incl. VAT

58

SWITCH ROTARY 2 PIN RESISTIVE

3235474

$62,99 Unit Price incl. VAT

59

COLLAR SHIFT

3234073

$57,74 Unit Price incl. VAT

60

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

61

DOG ENGAGEMENT 6-FACE

3234928

$136,49 Unit Price incl. VAT

62

GEAR-44T STAGE2(352842)

3235229

$173,24 Unit Price incl. VAT

63

GEAR-LOW 67T(352856)

3235232

$230,99 Unit Price incl. VAT

64

ENGAGEMENT DOG 6-FACE(352857)

3235233

$241,49 Unit Price incl. VAT

65

GEAR-46T STAGE 3(352872)

3235236

$204,74 Unit Price incl. VAT

66

GEAR-13T FRONT OUTPUT(352957)

3235237

$246,74 Unit Price incl. VAT

67

SHAFT-SHIFT(352973)

3235238

$68,24 Unit Price incl. VAT

68

GEAR 49T

3235396

$246,74 Unit Price incl. VAT

69

SHIFT DOG PARK/LOW (353357)

3235457

$272,99 Unit Price incl. VAT

70

RAIL-SHIFT SHAFT(353622)

3235542

$52,49 Unit Price incl. VAT

71

SPROCKET-48T 6-FACE REVERSE

3235755

$152,24 Unit Price incl. VAT

72

WELDMENT REAR MOUNT BRACKET

3235510

$99,74 Unit Price incl. VAT

73

GEAR SUBASSEMBLY

3234469

$136,49 Unit Price incl. VAT

74

SUBASSEMBLY SECTOR COVER

3235713

$209,99 Unit Price incl. VAT

75

SUBASSEMBLY AVALANCHE DIFFERENTIAL

3235373

$771,74 Unit Price incl. VAT

76

SUBASSEMBLY DIFF COVER [INCL. PLUG BUSHING] [INCL. PLUG BUSHING]

3235376

$262,49 Unit Price incl. VAT

77

SUBASSEMBLY 39T SIDE GEAR [INCL. PLUG] [INCL. PLUG]

3235374

$351,74 Unit Price incl. VAT

78

SUBASSY 39T SIDE GEAR [INCL. PLUG BUSHING] [INCL. PLUG BUSHING]

3235375

$351,74 Unit Price incl. VAT

79

SUBASM. SHAFT

3235336

$703,49 Unit Price incl. VAT

80

SUBASSY GEAR 53T [INCL. PINS BUSHING BEARING] [INCL. PINS BUSHING BEARING]

3235378

$750,74 Unit Price incl. VAT

81

SUBASM. LH CASE [INCL. HARDWARE]

3235422

$1 244,24 Unit Price incl. VAT

82

SUBASSEMBLY SHIFT FORK

3235920

$136,49 Unit Price incl. VAT

83

SUBASSEMBLY PAWL DETENT ROLLER

3235452

$68,24 Unit Price incl. VAT

84

SUBASSEMBLY RH COVER

3235995

$818,99 Unit Price incl. VAT

85

RETAINER-FORK

3234934

$19,94 Unit Price incl. VAT

86

COVER-BEARING CNTR DR.

3235241

$89,24 Unit Price incl. VAT

87

BRACKET WIRE HARNESS

3235350

$16,79 Unit Price incl. VAT

88

BRACKET MOUNT REAR

3235511

$99,74 Unit Price incl. VAT

89

PLUG M18 X 1.5 MAGNETIC

3234249

$25,19 Unit Price incl. VAT

90

CHAIN SILENT TYPE 101 .25P X .40W X 58L

3234737

$314,99 Unit Price incl. VAT

91

SWITCH ROTARY 2 PIN RESISTIVE

7662299

$209,99 Unit Price incl. VAT

92

SOLENOID

3235478

$545,99 Unit Price incl. VAT

93

SENSOR-SPEED TRANS

4013908

4082135

$204,74 Unit Price incl. VAT

94

SEAL TRIPLE LIP VITON 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

95

SEAL TRIPLE LIP VITON HELIX 30 X 47

3234851

$68,24 Unit Price incl. VAT

96

SEAL TRIPLE LIP VITON HELIX 40X70X7

3235052

$57,74 Unit Price incl. VAT

97

O-RING

3234302

$13,64 Unit Price incl. VAT

98

O-RING -012 VITON

3233836

$12,59 Unit Price incl. VAT

99

O-RING -014 VITON

3233828

$12,59 Unit Price incl. VAT

100

CAM PARK

3235983

$283,49 Unit Price incl. VAT

101

SPRING TORSION

3235885

$36,74 Unit Price incl. VAT

102

SPACER 19.4 X 34.0 X 2.0

3235883

$41,99 Unit Price incl. VAT

103

RING RETAINING BASIC EXTERNAL 0.75

3233045

$9,44 Unit Price incl. VAT
