1
Engine displacement
700
2
Year
2007
3
Trim
SPORTSMAN 700 EFI - A07MH68AX/AY/AZ
4
Parts Catalog

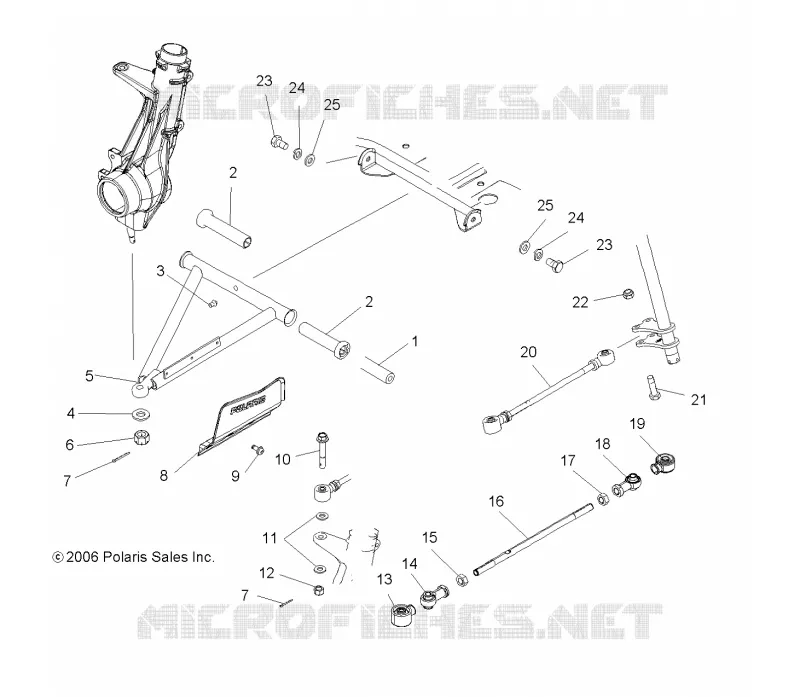

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
by
AIR BOX
FRONT SUSPENSION
1
2
2
3
4
5
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Shaft A-Arm
5133806
$52,49 Unit Price incl. VAT
2
Bushing A-Arm Long
5434551
5436973
$9,44 Unit Price incl. VAT
3
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
4
WASHER FLAT
7555957
$9,44 Unit Price incl. VAT
5
Kit A-Frame LH [Incl. 8 24 25 27 28]
2202865
$257,24 Unit Price incl. VAT
5
Kit A-Frame RH [Incl. 8 24 25 27 28]
2202866
$257,24 Unit Price incl. VAT
6
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
7
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
8
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
8
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
11
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
12
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
13
BOOT-SEAL ROD END 10MM
5412929
$20,99 Unit Price incl. VAT
14
ROD-END 10MM 1/2-20LH 42 DEG
7061138
$104,99 Unit Price incl. VAT
15
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
16
ROD-TIE 1/2-20X12.21
5134242
$83,99 Unit Price incl. VAT
17
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
18
ROD-END 3/8 1/2-20RH 44DEG
7061139
$115,49 Unit Price incl. VAT
19
BOOT-SEAL ROD END 1/2 IN
5412928
$20,99 Unit Price incl. VAT
20
ASM-TIE ROD 1/2-20X14.16 [INCL. 2-8]
1822851
$204,74 Unit Price incl. VAT
21
SCREW
7515415
$2,09 Unit Price incl. VAT
22
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
23
SCREW
7512492
$2,09 Unit Price incl. VAT
24
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
25
Washer .105
7555832
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
