CHASSIS, BULKHEAD ASM. FOR 600 RMK 144 / ES FROM 2019

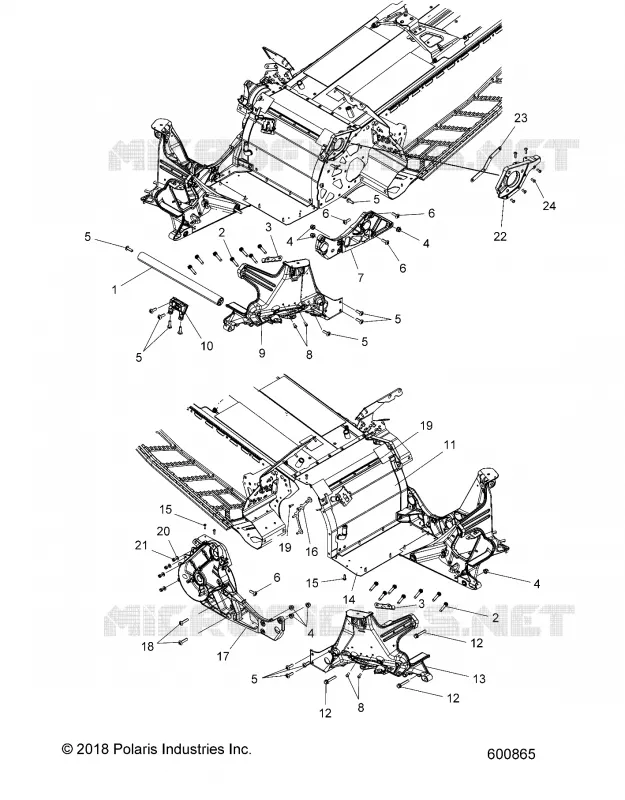

CHASSIS, BULKHEAD ASM.

-

KIT LORD 406 REPAIR KIT 50 ML [ADHESIVE]

2204171

$517,64 Unit Price incl. VAT

-

KIT LORD MIX NOZZLES 12 PIECE

2204172

$14,69 Unit Price incl. VAT

-

KIT LORD 406 50 ML CARTRIDGE [ADHESIVE]

2204400

$369,59 Unit Price incl. VAT

1

TUBE-CROSSOVER EXTRUDED

5140781

$173,24 Unit Price incl. VAT

2

STUD

7519204

$36,74 Unit Price incl. VAT

3

ASM. BRKT. IDLER TOP

1019666

$47,24 Unit Price incl. VAT

4

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

5

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

6

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$6,29 Unit Price incl. VAT

7

ASM. BRACE LOWER LH [REQUIRES ADHESIVE][INCL. SLEEVE]

1019183

$220,49 Unit Price incl. VAT

8

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$7,34 Unit Price incl. VAT

9

ASM. CLIP W/STUD LH [INCL. 2][REQUIRES ADHESIVE]

1019181

$519,74 Unit Price incl. VAT

10

MOUNT-STEERING LOWER MACH

5138449

$26,24 Unit Price incl. VAT

11

ASM-COOLER BULKHEAD [INCL. CLINCH NUTS]

1241285

$839,99 Unit Price incl. VAT

12

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$3,14 Unit Price incl. VAT

13

ASM. CLIP W/STUD RH [INCL. 2][REQUIRES ADHESIVE]

1019182

$488,24 Unit Price incl. VAT

14

FLOOR BULKHEAD

5256849

$47,24 Unit Price incl. VAT

15

RIVET-3/16-.090-.290

7661637

$2,09 Unit Price incl. VAT

16

ASM. STUD PLATE M6x4

1020927

$52,49 Unit Price incl. VAT

17

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

18

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$13,64 Unit Price incl. VAT

19

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$2,09 Unit Price incl. VAT

20

WASHER-6.2X14.25X2 ZC

7556588

$4,19 Unit Price incl. VAT

21

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$4,19 Unit Price incl. VAT

22

MOUNT-JACKSHAFT BEARING MACH

5139244

$47,24 Unit Price incl. VAT

23

ASM-NUT PLATE JACKSHFT TP/CO

1024312

$36,74 Unit Price incl. VAT

24

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
