DRIVE TRAIN, MAIN GEARCASE FOR SCRAMBLER 500 4X4 INTL - A09BG50FA FROM 2009

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE INTERNALS

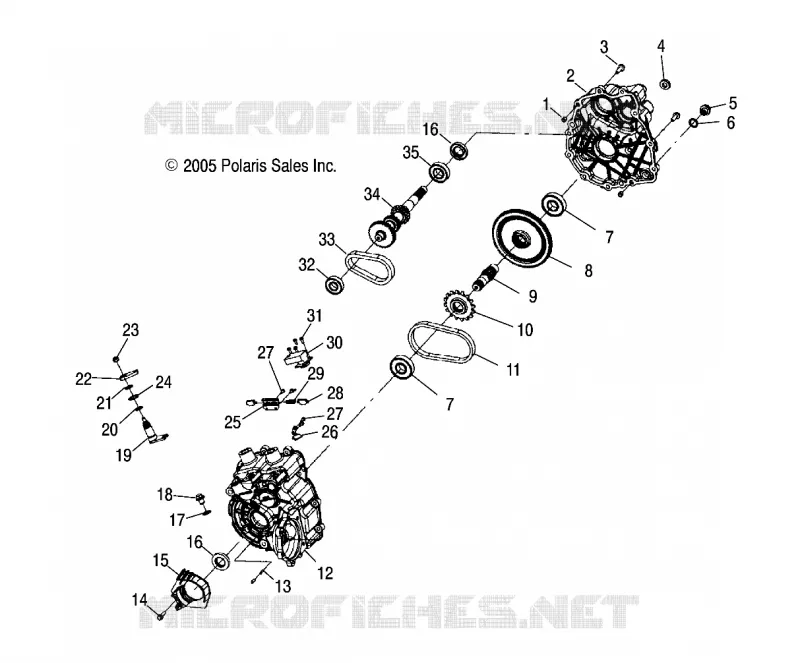

DRIVE TRAIN, MAIN GEARCASE

-

Asm. Gearcase [Incl. All](If built after 1/17/05)

1341502

Not Available

1

PIPE KNOCK

3233529

$16,79 Unit Price incl. VAT

2

Gearcase LH (Used in 1341502)

3234036

Not Available

3

SCREW

3233252

$9,44 Unit Price incl. VAT

4

Bushing Pivot

3233527

$57,74 Unit Price incl. VAT

5

Plug

3233448

$41,99 Unit Price incl. VAT

6

Washer (Used in 1341502)

3234034

Not Available

7

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

8

Gear 98T

3233558

$342,29 Unit Price incl. VAT

9

Shaft Output

3233544

$262,49 Unit Price incl. VAT

10

Sprocket 16/26T

3233545

$94,49 Unit Price incl. VAT

11

Chain Roller

3233546

$120,74 Unit Price incl. VAT

12

Gearcase RH

3233896

$745,49 Unit Price incl. VAT

13

VENT

3233037

Not Available

14

SCREW

3233026

$12,59 Unit Price incl. VAT

15

Guide Chain

3233897

$89,24 Unit Price incl. VAT

16

SEAL TRIPLE LIP

3233788

$57,74 Unit Price incl. VAT

17

Washer

3233872

$17,84 Unit Price incl. VAT

18

PLUG OIL FILL

3233711

Not Available

19

SHAFT SHIFT HI/REV.

3233559

Not Available

20

O-RING

3233548

$52,49 Unit Price incl. VAT

21

RING RETAINING BASIC EXTERNAL 0.75

3233045

$9,44 Unit Price incl. VAT

22

Bellcrank HLR

3234148

$83,99 Unit Price incl. VAT

23

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

24

WASHER

3233040

$17,84 Unit Price incl. VAT

25

BRACKET INTERLOCK

3233309

$33,06 Unit Price incl. VAT

26

Deflector Oil

3233043

$21,20 Unit Price incl. VAT

27

Screw

3233747

Not Available

28

PIN INTERLOCK

3233308

Not Available

29

SPRING SHIFT.INTERLOCK

3233550

Not Available

30

Switch 3 Position

3234002

$262,49 Unit Price incl. VAT

31

SCREW TAPPING TORX PH 11902 X.50

3233749

$10,49 Unit Price incl. VAT

32

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

33

CHAIN SILENT 34P

3233036

Not Available

34

SHAFT INPUT HI/REV.HCR.EXT.

3233536

Not Available

35

BEARING

3233019

$54,59 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
