1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU
4
Parts Catalog
DIPSTICK OIL FILTER
5
Parts Diagram
Parts Catalog
GEAR SELECTOR
by
CLUTCH COVER

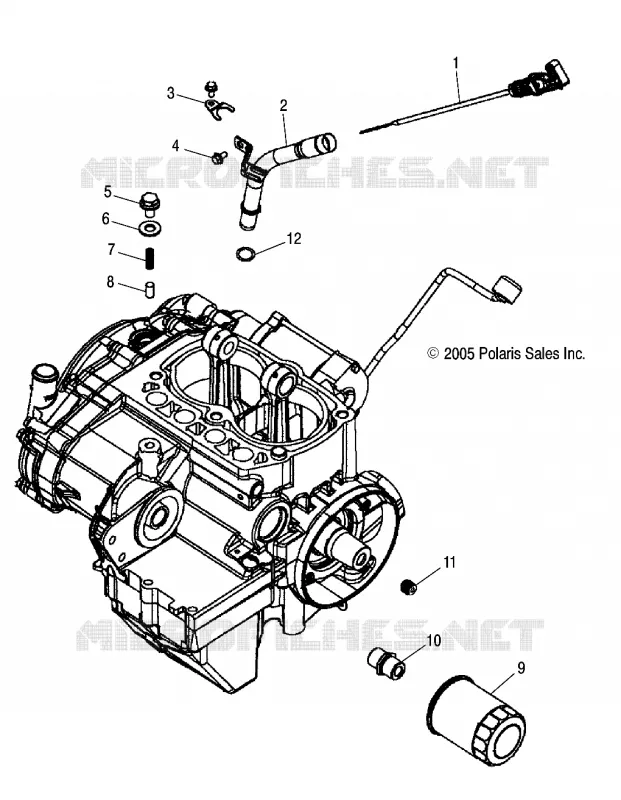

DIPSTICK OIL FILTER
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
1
Dipstick
1202109
Not Available
2
Tube Oil Fill
1202629
Not Available
3
Clamp
5245805
$57,74 Unit Price incl. VAT
4
SCREW-M5X0.8X10 HX/FL-YD
7517795
$9,44 Unit Price incl. VAT
5
SCREW
7516824
$73,49 Unit Price incl. VAT
6
WASHER
7556005
$10,49 Unit Price incl. VAT
7
Spring Pressure Relief
7042203
$26,24 Unit Price incl. VAT
8
PIN-DOWELL M8X16
7661127
$26,24 Unit Price incl. VAT
9
FILTER-OIL (10 MICRON)
2540086
$19,20 Unit Price incl. VAT
10
Nipple Oil Filter
2540115
2521388
$52,49 Unit Price incl. VAT
11
Plug Socket
7518007
$10,49 Unit Price incl. VAT
12
SEAL O-RING
5812016
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
