DRIVE TRAIN, CLUTCH, PRIMARY FOR 850 RMK KHAOS 155 FROM 2022

DRIVE TRAIN, QUICKDRIVE BELT SYSTEM

DRIVE TRAIN, CLUTCH, SECONDARY

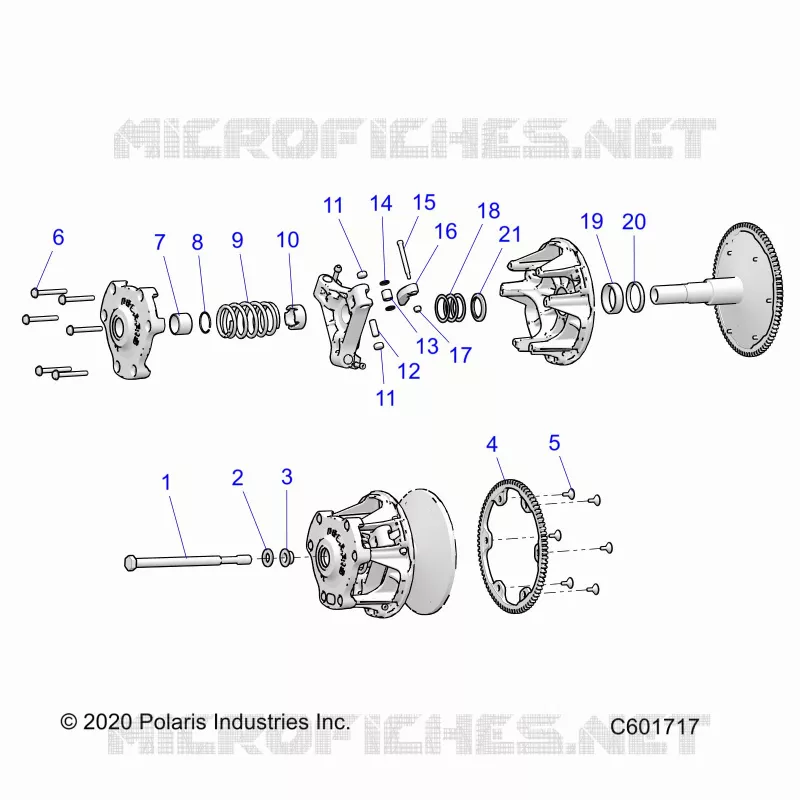

DRIVE TRAIN, CLUTCH, PRIMARY

-

ASM-DRIVE CLUTCH BSC 6:1 ES [INCL. 2-4 6-10 14-17]

1323613

$949,19 Unit Price incl. VAT

-

ASM-DRIVE CLUTCH BSC 6:1 [NON E.S.][INCL. 2-4 6-10 14-17]

1323614

$895,64 Unit Price incl. VAT

1

SCR-M14X1.5X215 HX 10.9 Y35 R

7518412

$52,49 Unit Price incl. VAT

2

WASHER

7556702

$9,44 Unit Price incl. VAT

3

WASHER-CLUTCH RET M14

5132441

$41,99 Unit Price incl. VAT

4

KIT GEAR STARTER RING [E.S.][INCL. 22]

2870002

$209,99 Unit Price incl. VAT

5

SCR-SHFL-5/16-18X0.625 GR5 ZY3 [E.S.]

7515351

$7,34 Unit Price incl. VAT

6

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$2,09 Unit Price incl. VAT

7

BEARING COVER GARMAX

3514347

$73,49 Unit Price incl. VAT

8

RING RETAINING COVER

7710417

$2,09 Unit Price incl. VAT

9

SPRING-DRV CLUTCH 120/320 DRE [HIGH ELEVATON SET-UP]

7044537

$115,49 Unit Price incl. VAT

9

SPRING CLUTCH(ALMD/GOLD) [LOW ELEVATON SET-UP]

7041645

$83,99 Unit Price incl. VAT

10

Nut Jam

5020425

$41,99 Unit Price incl. VAT

11

Kit - Shim Drive Clutch

2200387

$47,24 Unit Price incl. VAT

11

BUTTON GUIDE

5430445

$11,54 Unit Price incl. VAT

12

PIN ROLLER

5133079

$11,54 Unit Price incl. VAT

13

ASM. ROLLER AND BUSHING

1321622

$62,99 Unit Price incl. VAT

14

WASHER

5430945

$3,14 Unit Price incl. VAT

15

PIN HARDENED WEIGHT

7515105

$26,24 Unit Price incl. VAT

16

ASM-WEIGHT/BUSHING (10-68) [HIGH ELEVATON SET-UP]

1322427

$73,49 Unit Price incl. VAT

16

ASM. WEIGHT/BUSHING 10-72

1322428

$73,49 Unit Price incl. VAT

17

NUT-10-24-FLEX LOC-Z

7541906

$6,29 Unit Price incl. VAT

18

SPACER-1.350 X 1.750 X .020-Y

5210752

$3,14 Unit Price incl. VAT

18

SPACER-1.350X1.750X.025-Y

5242981

$7,34 Unit Price incl. VAT

18

SPACER-1.350 X 1.750 X .050-Y

5210754

$6,29 Unit Price incl. VAT

18

SPACER-1.350X1.750X.032-Y

5210753

$4,19 Unit Price incl. VAT

19

BEARING SLEEVE

3514641

$34,64 Unit Price incl. VAT

20

INSERT MOVEABLE

5010188

$13,64 Unit Price incl. VAT

21

SHIM-1.25X1.74X.103 STEP

5142519

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
