ENGINE, AIR INTAKE (BUILT 10/22/10 AND BEFORE) FOR SPORTSMAN X2 550 - A11TN55AA/AZ FROM 2011

SWITCHES, SENSORS, ECU AND CONTROL MODULES

ENGINE, BREATHER

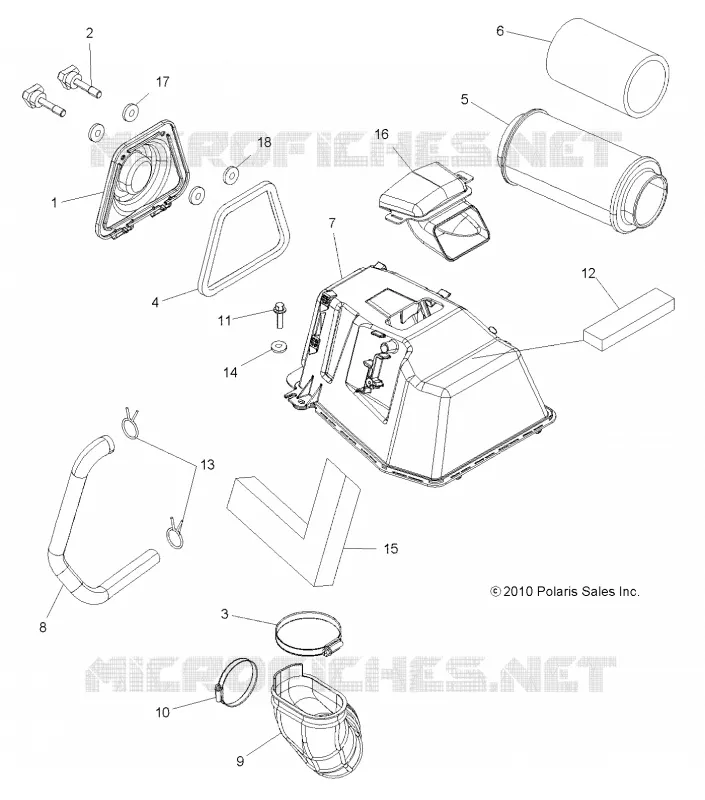

ENGINE, AIR INTAKE (BUILT 10/22/10 AND BEFORE)

1

Cover Airbox

5438881

$83,99 Unit Price incl. VAT

1

Asm. Cover Airbox [Incl. 1 2 4]

1203696

Not Available

2

KNOB-M6X1.0

7081619

$29,39 Unit Price incl. VAT

3

CLAMP-WORM DRIVE 3.69 DIA

7081626

$14,69 Unit Price incl. VAT

4

SEAL AIRBOX COVER

5813359

$12,59 Unit Price incl. VAT

5

FILTER AIR INTAKE

7080595

$51,23 Unit Price incl. VAT

6

Filter Pre-Cleaner Sleeve

5811633

$19,20 Unit Price incl. VAT

7

Box Air Intake

5436808

$293,99 Unit Price incl. VAT

8

Hose Breather Single

5413588

$29,39 Unit Price incl. VAT

9

Boot Throttle Body Single

5414035

$83,99 Unit Price incl. VAT

10

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

11

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

12

FOAM-CAB SGUARD 254X38.1X19.05

5813409

$12,59 Unit Price incl. VAT

13

CLAMP-HOSE SPRING .81

7081026

$14,69 Unit Price incl. VAT

14

WASHER-FL .281X.750X.062-Y

7555859

$2,09 Unit Price incl. VAT

15

Foam

5813410

$36,74 Unit Price incl. VAT

16

Hood Air Intake

5413575

$73,49 Unit Price incl. VAT

17

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$3,14 Unit Price incl. VAT

18

RETAINER-BOLT 1/4-20

7670154

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
