1
Engine displacement
700
2
Year
2009
3
Trim
RANGER 4X4 700 EFI ALL OPTIONS - R09HH68/HY68
4
Parts Catalog
DECALS
5

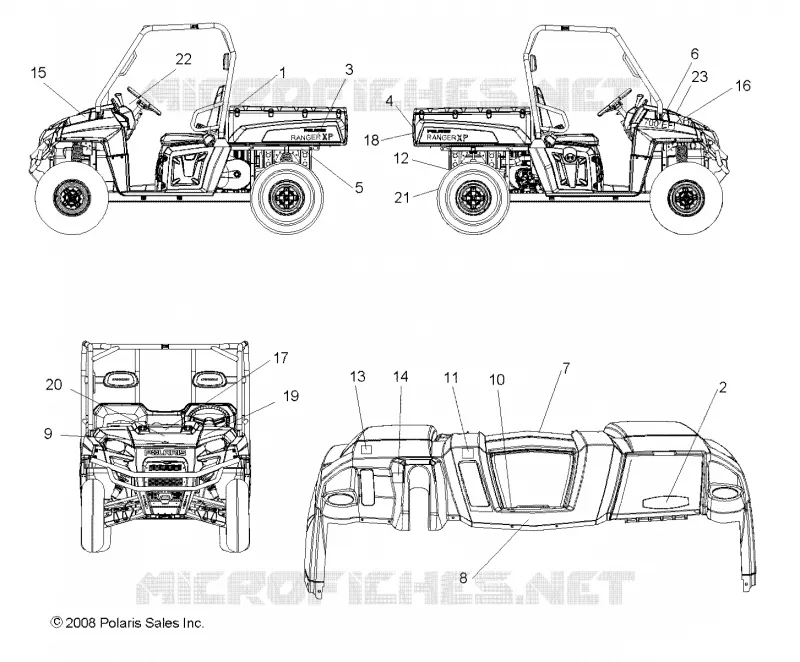

Parts Diagram
Parts Catalog
by
FLOOR FENDERS
DECALS
17
18
18
18
19
19
20
20
21
22
23
23
1
Decal Warning Cont/Pass/Tire Pressure
7174886
Not Available
2
Plate #RANGER Hardest Working Smoothest Riding# w/o Holes
5252753
$68,24 Unit Price incl. VAT
3
Decal Box #RANGER XP# NBU LH [AH][AL]
7175583
Not Available
3
Decal Box #RANGER XP# Suede RH [AV]
7176037
Not Available
3
Decal Box #RANGER HD# Silver RH [AN]
7175633
Not Available
3
Decal Box #RANGER XP# Silver RH [AB]
7175586
Not Available
3
Decal Box #RANGER XP# Silver LH [AB]
7175585
Not Available
3
Decal Box #RANGER XP# Gold LH [AS]
7176014
Not Available
3
Decal Box #RANGER XP# Solar Red LH [AR]
7175587
Not Available
3
Decal Box #RANGER XP# Suede LH [AV]
7176036
Not Available
3
Decal Box #RANGER XP# NBU RH [AH][AL]
7175584
Not Available
3
Decal Box #RANGER XP# Sunset Red RH [AM][AZ]
7175582
Not Available
3
Decal Box #RANGER XP# Gold RH [AS]
7176015
Not Available
3
Decal Box #RANGER HD# Silver LH [AN]
7175632
Not Available
3
Decal Box #RANGER XP# Solar Red RH [AR]
7175588
Not Available
3
Decal Box #RANGER XP# Sage Brush Green RH [AG]
7175580
Not Available
3
Decal Box #RANGER XP# Sage Brush Green LH [AG]
7175579
Not Available
3
Decal Box #RANGER XP# Sunset Red LH [AM][AZ]
7175581
Not Available
4
Decal #POLARIS# Tailgate Gold [AH][AL][AS]
7175623
Not Available
4
DECAL #POLARIS# TAILGATE WHITE
7175576
$23,09 Unit Price incl. VAT
5
DECAL REFLECTOR RED
7175628
$23,09 Unit Price incl. VAT
6
Decal #700 EFI# Hood RH [AB][AG][AM][AN][AR][AV]
7175590
Not Available
6
Decal #700 EFI# Hood LH [AB][AG][AM][AN][AR][AV]
7175589
Not Available
6
Decal #700 EFI# Hood Gold RH [AH][AL]
7175601
Not Available
6
Decal #700 EFI# LH [AS]
7176038
Not Available
6
Decal #700 EFI# Hood Gold LH [AH][AL]
7175600
Not Available
6
Decal #700 EFI# RH [AS]
7176039
Not Available
7
Decal #NEW BREAK UP# (AB)
7171067
Not Available
8
Decal Warning Discretionary
7175565
Not Available
9
LOGO-POLARIS STAR
7078465
$23,09 Unit Price incl. VAT
10
DECAL #APPLY BRAKE TO START#
7170739
Not Available
11
DECAL CAUTION #SHIFT AT IDLE#
7172674
Not Available
12
Decal Hitch (If built after 11/08/04)
7173403
Not Available
13
DECAL PARK BRAKE
7174926
Not Available
14
DECAL AGE WARNING 16
7175566
Not Available
15
Decal Buckhead Hood Side LH [AL][AS]
7175629
Not Available
15
Decal Buckhead Hood Side RH [AL][AS]
7175630
Not Available
16
Decal Hood Side #XP# RH [AB][AM][AV][AZ]
7175594
Not Available
16
Decal Hood Side #XP# LH [AB][AM][AV][AZ]
7175593
Not Available
17
Decal Buckhead Hood Center [AL][AS]
7175634
Not Available
18
Decal Heavy Duty Tailgate [AN]
7175592
Not Available
18
Decal Special Edition Tailgate [AV][AZ]
7175591
Not Available
18
Decal Tailgate Special Edition Gold [AS]
7176044
Not Available
19
Decal Hood Side HD Stripe RH [AN]
7175598
Not Available
19
Decal Hood Side HD Stripe LH [AN]
7175595
Not Available
20
Decal Dash Center Stripes [AN]
7175597
Not Available
20
Decal Hood Center Stripe LH [AN]
7175596
Not Available
21
Decal Self Leveling Suspension [AN]
7175670
Not Available
22
DECAL EPS [EAU]
7175528
$18,89 Unit Price incl. VAT
23
Decal 700 EFI Gold Stripe Front LH [AS]
7176098
Not Available
23
Decal 700 EFI Gold Stripe Front RH [AS]
7176099
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
