ENGINE, AIR INTAKE SYSTEM FOR SPORTSMAN TOURING 500 HO - A13DH50AX/AZ FROM 2013

ENGINE, CARBURETOR MOUNTING AND FUEL LINES

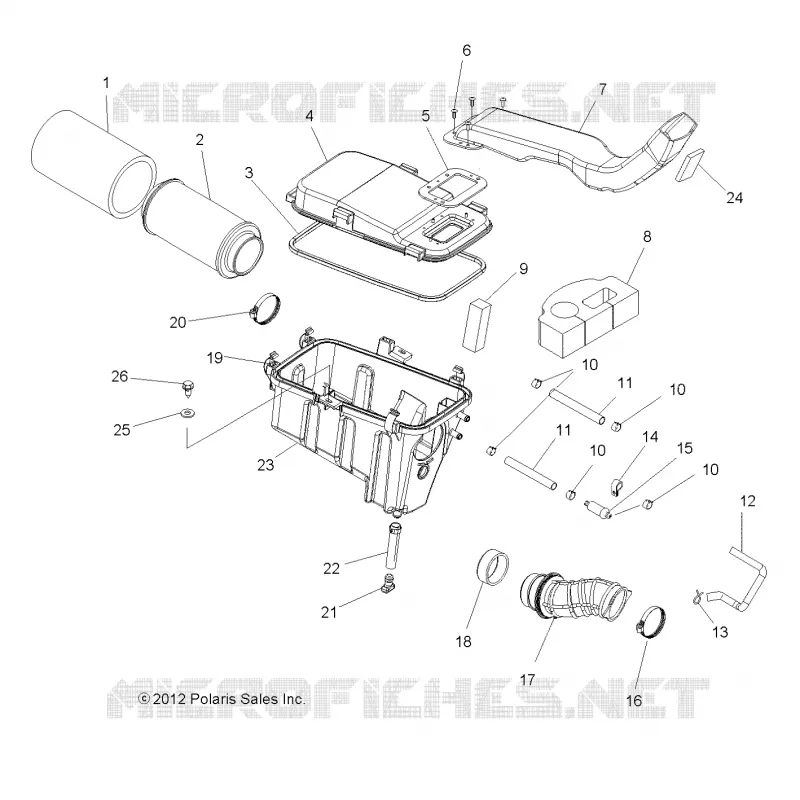

ENGINE, AIR INTAKE SYSTEM

1

Filter Pre-Cleaner Sleeve

5811633

$19,20 Unit Price incl. VAT

2

FILTER AIR INTAKE

7080595

$51,23 Unit Price incl. VAT

3

Seal Air Box Cover

5812829

$52,49 Unit Price incl. VAT

4

Cover Air Box

5436278

Not Available

5

Gasket Intake

5412748

Not Available

6

SCREW(10)

7517317

$6,29 Unit Price incl. VAT

7

Duct Air Inlet

5438031

$99,74 Unit Price incl. VAT

8

SEAL FOAM

5811626

$57,74 Unit Price incl. VAT

9

Filter Crankcase

5812910

$8,39 Unit Price incl. VAT

10

Clamp Hose Spring .69 Inch

7080699

$3,14 Unit Price incl. VAT

11

LINE BREATHER 3/8 ID.

8450073600

$136,49 Unit Price incl. VAT

12

Hose Breather

5413104

Not Available

13

Clamp Hose Spring .75 Inch

7080694

$10,49 Unit Price incl. VAT

14

P-Clamp

7080913

$10,49 Unit Price incl. VAT

15

FILTER BREATHER IN LINE

2530029

$11,54 Unit Price incl. VAT

16

CLAMP BAND NARROW

7080413

$5,76 Unit Price incl. VAT

17

Boot Carb

5413718

$73,49 Unit Price incl. VAT

18

SLEEVE CARBURETOR INNER

5433847

$27,29 Unit Price incl. VAT

19

Clip Air Box

5249292

Not Available

20

CLAMP-BAND NARROW 60-80MM

7080707

$5,76 Unit Price incl. VAT

21

Plug Trap

5435299

$12,59 Unit Price incl. VAT

22

FUEL LINE

8450059150

$115,49 Unit Price incl. VAT

23

Box Air

5435981

Not Available

24

Foam Cover

5813265

$36,74 Unit Price incl. VAT

25

WASHER-FL .281X.750X.062-Y

7555859

$2,09 Unit Price incl. VAT

26

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
