DRIVE TRAIN, FRONT GEARCASE INTERNALS FOR RANGER 1000 DIESEL FROM 2015

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, MAIN GEARCASE MOUNTING

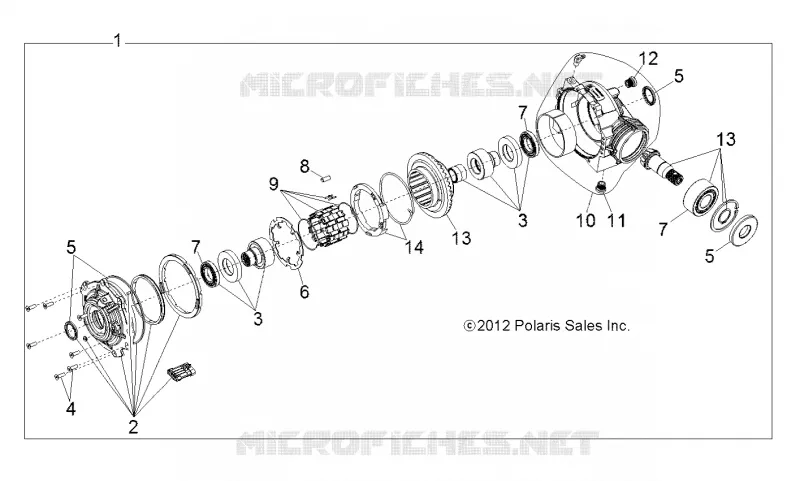

DRIVE TRAIN, FRONT GEARCASE INTERNALS

1

ASM. FRONT GEARCASE [INCL. 2-13]

1333104

$3 008,24 Unit Price incl. VAT

2

ASM. COVER OUTPUT W/O-RING DOWEL PIN OIL SEAL COVER CONNECTOR ASSY BACKLASH SPACER 4WD COIL GROMMET & HEAT SHRINK TUBING

3235168

$955,49 Unit Price incl. VAT

3

ASSY OUTPUT HUB - MALE AND FEMALE

3235169

$782,24 Unit Price incl. VAT

4

COVER FASTENERS W/ALL FASTENERS

3235170

$34,64 Unit Price incl. VAT

5

COMPLETE SEAL REPAIR

3235171

$167,99 Unit Price incl. VAT

6

PLATE ARMATURE

3234407

$209,99 Unit Price incl. VAT

7

BEARING-PINION 5306 W/ALL BEARINGS

3235174

$135,44 Unit Price incl. VAT

8

KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]

3234393

$10,49 Unit Price incl. VAT

9

ASM. ROLL CAGE [INCL. CAGE SPRINGS CLIPS]

3235261

$666,74 Unit Price incl. VAT

9

ASM. ROLL CAGE ALUM [HIGH PERFORMANCE ACCESSORY W/CLIP SET]

3235262

$1 065,74 Unit Price incl. VAT

10

KIT GEARCASE ASSY W/HOSE FITTING BUSHING SEAL GEARCASE FILL PLUG & DRAIN PLUG[TO 1/17/2019]

3235440

$1 175,99 Unit Price incl. VAT

11

KIT-PLUG DRAIN

2203738

$68,24 Unit Price incl. VAT

12

KIT-PLUG FILL

2203739

$83,99 Unit Price incl. VAT

13

KIT RING AND PINION [INCL. RING GEAR ASM. PINION BEARING INTERNAL RING SHAFT RING]

3235441

$1 186,49 Unit Price incl. VAT

14

SPRING TORSION RETAINER

3234908

$173,24 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
