1
Engine displacement
500
2
Year
2001
3
Trim
SPORTSMAN 500 HO - A01CH50AA
4
Parts Catalog

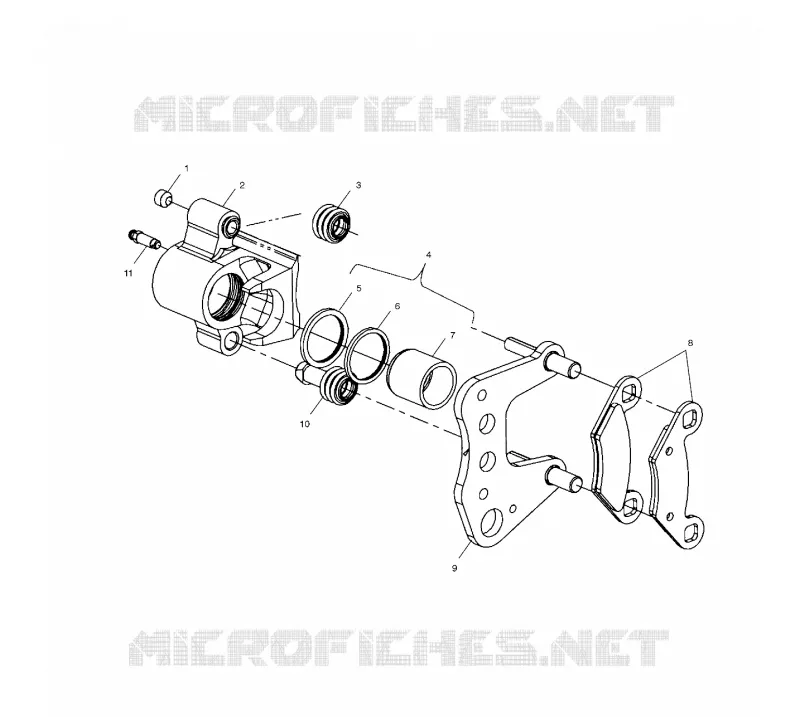

FRONT BRAKE
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
FRAME
FRONT BRAKE
-
Asm. Brake Caliper RH [Incl. 1-7 9 10]
1910550
Not Available
-
Asm. Brake Caliper LH [Incl. 1-7 9 10]
1910549
$488,24 Unit Price incl. VAT
1
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
2
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
2
Caliper Brake LH [If built before 5/02/02]
5132960
Not Available
2
Caliper Brake RH [If built before 5/02/02]
5132961
Not Available
3
BOOT PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
4
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
5
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
6
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
7
PISTON-BRAKE LONG Substituted by 1930665
5132294
1930665
$104,99 Unit Price incl. VAT
8
BRAKE PADS AFT FRONT (Use w/1910465 1910466)
2201398
2202412
$98,16 Unit Price incl. VAT
9
MOUNT ASM CALIPER (After 7/09/99)
1910411
1910513
$99,74 Unit Price incl. VAT
10
BOOT BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
11
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
