1
Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 RMK - A02CD50AB
4
Parts Catalog
OIL TANK (IF BUILT AFTER 1/02/02)
5
Parts Diagram
Parts Catalog
CRANKCASE
by

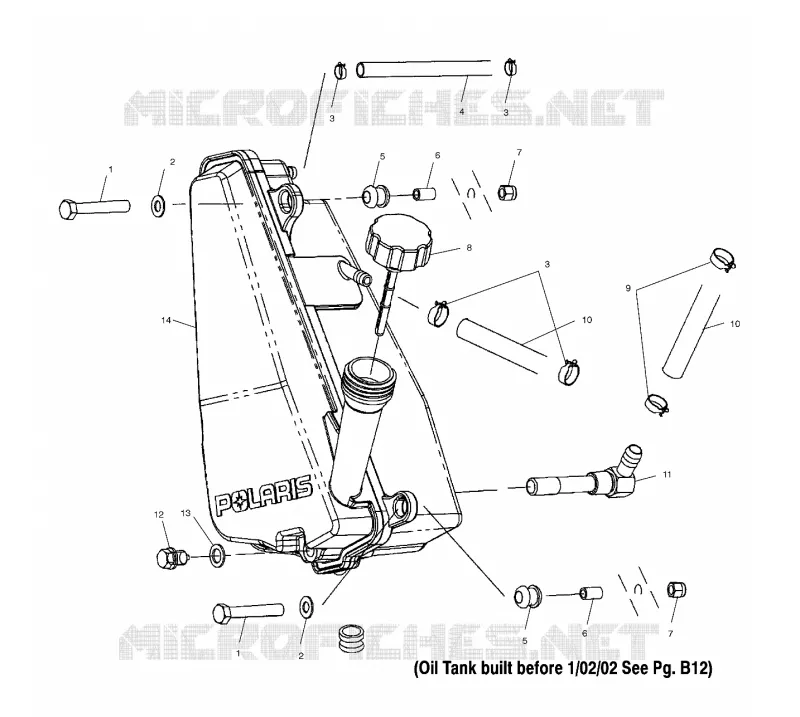

OIL TANK (IF BUILT AFTER 1/02/02)
1
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
2
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
3
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
4
Line Breather
5411668
Not Available
5
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
6
Bushing
5333204
$41,99 Unit Price incl. VAT
7
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
8
Dipstick
5434308
Not Available
9
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
10
Line
845009616
Not Available
11
Screen Oil Filter 90 Degree
7052326
$83,99 Unit Price incl. VAT
12
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
13
WASHER
5850135
$5,76 Unit Price incl. VAT
14
Tank Oil
1261176
1261653
$509,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
