1
Engine displacement
900
2
Year
2013
3
Trim
RANGER CREW 900 DIESEL - R13WH90DG
4
Parts Catalog

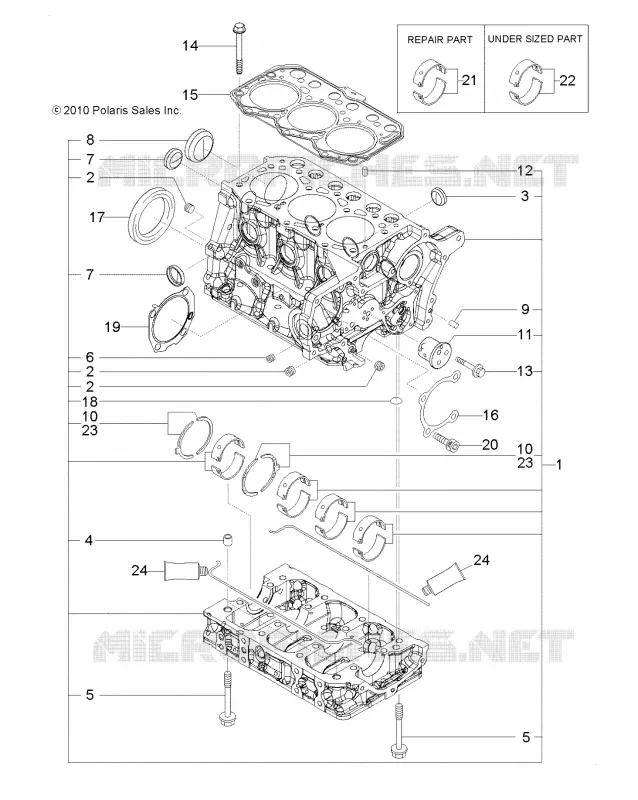

CYLINDER BLOCK
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
CYLINDER HEAD AND BONNET
CYLINDER BLOCK
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
1
Asm. Cylinder Block [Incl. 2-13 18]
3070006
$5 662,64 Unit Price incl. VAT
2
Plug
3070007
Not Available
3
Plug
3070008
$9,44 Unit Price incl. VAT
4
Pipe Knock
3070009
Not Available
5
Bolt
3070010
Not Available
6
Plug
3070011
Not Available
7
Plug
3070012
$52,49 Unit Price incl. VAT
8
Plug
3070013
$73,49 Unit Price incl. VAT
9
Pin Parallel
3070014
Not Available
10
Asm. Metal Thrust
3070015
$120,74 Unit Price incl. VAT
11
Shaft Idle Gear
3070016
Not Available
12
Pin Spring
3070017
Not Available
13
Bolt
3070018
Not Available
14
Bolt Cylinder Head
3070019
$19,94 Unit Price incl. VAT
15
Gasket Cylinder Head
3070020
$125,99 Unit Price incl. VAT
16
Gasket FOP Bolt
3070021
$10,49 Unit Price incl. VAT
17
Seal Oil
3070022
$68,24 Unit Price incl. VAT
18
O-Ring
3070023
Not Available
19
Gasket Pump
3070024
$17,84 Unit Price incl. VAT
20
Bolt
3070025
$7,34 Unit Price incl. VAT
21
Bearing Main Set
3070026
$74,54 Unit Price incl. VAT
22
Metal Main
3070027
$125,99 Unit Price incl. VAT
23
Bearing Thrust
3070028
Not Available
24
Sealant
3070029
$162,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
