REAR BRAKE DRUM FOR GEM CLASSIC ALL OPTIONS (R05) - L16G2DGALC/4S/6A/6S FROM 2016

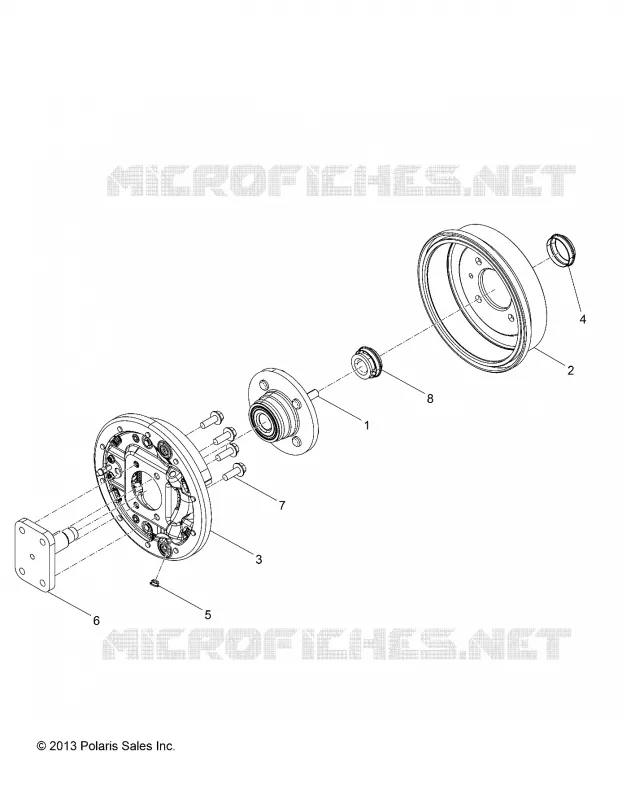

REAR BRAKE DRUM

1

ASM. HUB

1522176

Not Available

1

BOLT(10)

7515321

Not Available

2

DISC BRAKE

5211325

$141,74 Unit Price incl. VAT

2

DRUM

1912185

Not Available

3

ASSY BRAKE REAR LH LD

1912190

Not Available

3

SEAL FR. HUB

3610019

$68,24 Unit Price incl. VAT

3

ASSY BRAKE REAR RH LD

1912191

Not Available

3

ASSY BRAKE REAR RH HD

1912217

Not Available

3

ASSY BRAKE REAR LH HD

1912216

Not Available

4

KEY

7721205

Not Available

4

HUB-DUST COVER

5414901

Not Available

5

CLUTCH ASM FR.HUB

1520143

Not Available

5

PLUG-DRUM PARKING BRAKE

5450918

Not Available

6

STUD WHEEL 5/16-18(10)

7515330

Not Available

6

SHAFT AXLE

6230691

Not Available

7

SCR-HXFL-M10X1.25X30 8.8 ZOD

7519059

$5,76 Unit Price incl. VAT

7

HUB WHEEL ASM. (Incl. 3 6 7 23)

1520171

Not Available

8

NUT HEX

7547698

Not Available

8

PLUG PIPE

7052045

$26,24 Unit Price incl. VAT

9

BRG TAPER.ROLL.CONE

3554506

$54,59 Unit Price incl. VAT

10

WASHER(10)

5211101

Not Available

11

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

12

NUT LOCK Substituted by 7543201

7543202

Not Available

13

O RING

5410470

$4,19 Unit Price incl. VAT

14

CAP HUB

5431367

Not Available

15

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

16

RIM FRONT WELD. (Primed)

1520118

Not Available

17

TIRE FR(22X8-10)

5410480

Not Available

18

CAGE ROLL Substituted by 3250028

3250023

$430,49 Unit Price incl. VAT

19

SPRING GARTER

3250022

Not Available

20

ROLLS

3250010

$68,24 Unit Price incl. VAT

21

CAM

3250024

Not Available

22

PLATE ARMATURE

5211148

$52,49 Unit Price incl. VAT

23

BRG TAPER ROLL CUP

3554507

$54,59 Unit Price incl. VAT

24

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

25

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
