FRONT TORQUE ARM STORM 0940782 AND STORM SKS 0940582 (4925032503021A) FOR STORM SKS - 0940582 FROM 1994

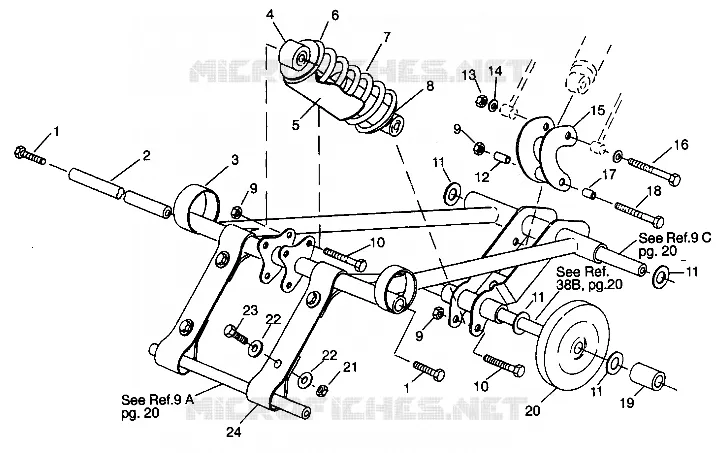

FRONT TORQUE ARM STORM 0940782 AND STORM SKS 0940582 (4925032503021A)

1

BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)

7515493

Not Available

2

SHAFT MOUNTING

5010149

Not Available

3

ARM FR.TORQUE BLK.

1540794067

Not Available

4

SHOCK CTR.SUSP.

7041281

Not Available

5

SHIELD SPRING

5430671

$47,24 Unit Price incl. VAT

6

RETAINER SPRING COIL

5220225

$19,94 Unit Price incl. VAT

7

SPRING COMP. BLK.

7041289067

$47,66 Unit Price incl. VAT

8

RETAINER-SPRING

5210953

$11,54 Unit Price incl. VAT

9

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

10

SCREW

7515415

$2,09 Unit Price incl. VAT

11

BUSHING-.781 X1.250X.060-Y

7556301

$6,29 Unit Price incl. VAT

12

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

13

NUT FLEX LOC (10)

7542402

$11,54 Unit Price incl. VAT

14

WASHER(10) Substituted by 7555806

7555720

$1,56 Unit Price incl. VAT

15

SHOCK ARM WELD BLK.

1540791067

Not Available

16

BOLT(10)

7515525

Not Available

17

SPACER

5333028

$2,61 Unit Price incl. VAT

18

BOLT

7515438

$9,44 Unit Price incl. VAT

19

SPACER OUTER

5332784

Not Available

20

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

21

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

22

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

23

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

24

STRAP LIMITER

5410397

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
