1
Engine displacement
0
2
Year
2016
3
Trim
L16U2NAGFA/MA M1400 GAS [L16U2NAGFA/MA] - R09
4
Parts Catalog

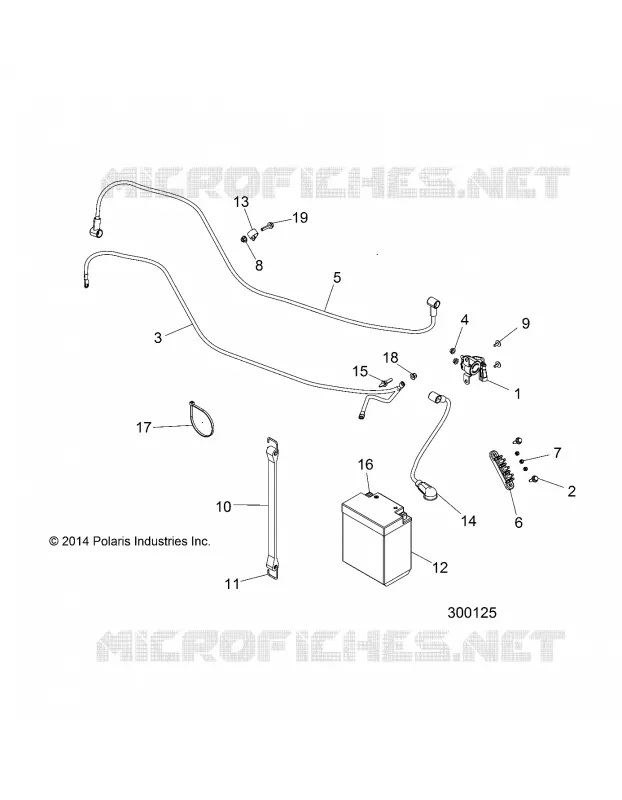

ELECTRICAL, BATTERY
5
Parts Diagram
Parts Catalog
CHASSIS, FRAME AND FRONT BUMPER
by
ELECTRICAL, HEADLIGHTS, TAILLIGHTS AND BULBS
ELECTRICAL, BATTERY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
2
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
3
CABLE GROUND ENG/BATTERY/CHASSIS
4015013
Not Available
4
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
5
CABLE SOLENOID TO STARTER
4015012
Not Available
6
BLOCK-TERMINAL 3 POST TALL
4015778
$62,99 Unit Price incl. VAT
7
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
8
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
ASM-STRAP BATTERY [INCL. 4]
2635371
$41,99 Unit Price incl. VAT
11
HOOK-STRAP BATTERY
7081733
2634189
$20,99 Unit Price incl. VAT
12
BATTERY-SEALED 14AH ETX15
4011138
$178,49 Unit Price incl. VAT
13
CLAMP-RUBBER COATED .75# ID
7081116
$13,64 Unit Price incl. VAT
14
CABLE-BATT TO SOLENOID/TERMINA
4011497
$83,99 Unit Price incl. VAT
15
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT
16
KIT BATTERY BOLT
2202848
$7,34 Unit Price incl. VAT
17
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
18
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
19
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
