REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC FOR SPORTSMAN 570 EPS EBS TRAIL PACKAGE FROM 2024

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION SHOCK AND MOUNTING

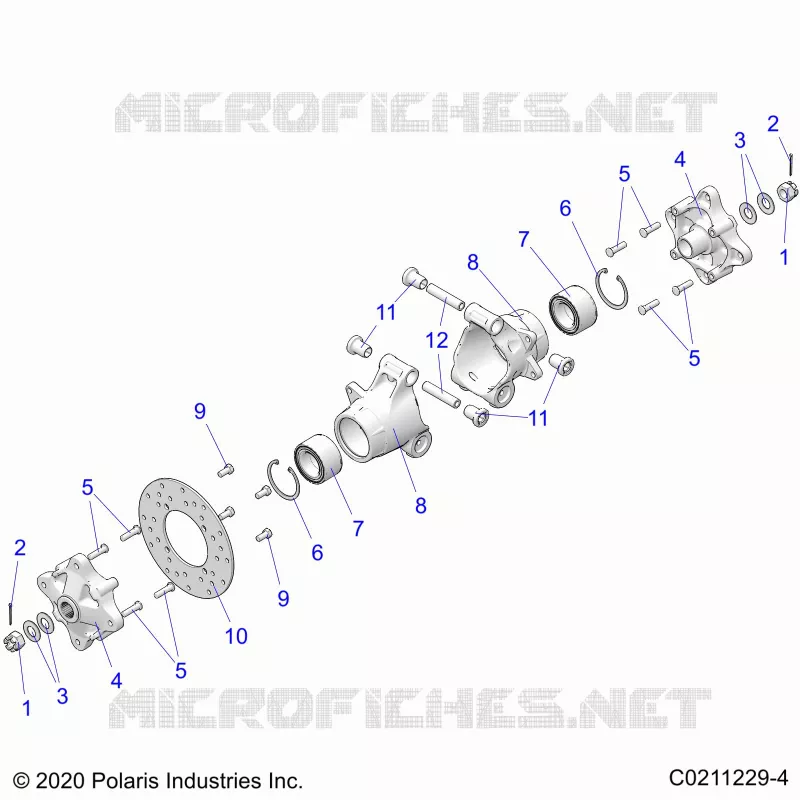

REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC

1

NUT-M18X1.5 CASTLE ZINC/YELLOW

7547337

$3,66 Unit Price incl. VAT

2

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

3

WASHER-CONE.755X1.5X.072-.107P [RRP99C]

7555796

$14,69 Unit Price incl. VAT

4

HUB-WHEEL REAR MACH

5143629

$157,49 Unit Price incl. VAT

5

STUD-3/8-24X1.38 PRESS FIT-Z

7518378

$3,14 Unit Price incl. VAT

6

RING-RETAINING 2.875 INTERNAL

7710440

$18,89 Unit Price incl. VAT

7

BEARING-WHEEL 40X74X40MM

3514917

$73,49 Unit Price incl. VAT

7

BEARING-WHEEL HD 40X74X40MM [OPTIONAL]

3515087

$108,14 Unit Price incl. VAT

8

CARRIER-BEARING WHEEL (MACH)

5135563

$121,79 Unit Price incl. VAT

9

SCR-HH-3/8-16X0.75 GR5 ZY3

7518903

$7,34 Unit Price incl. VAT

10

DISC-BRAKE REAR 8.625X.188

5248250

$141,74 Unit Price incl. VAT

11

ASM-BUSHING HD W/SEAL 6.75 FLG (HEAVY DUTY)

1543326

$24,14 Unit Price incl. VAT

12

Shaft A-Arm. Short

5020826

$23,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
