1
Engine displacement
800
2
Year
2011
3
Trim
RANGER 4X4 800 EFI ALL OPTIONS - R11TH76/TY76
4
Parts Catalog

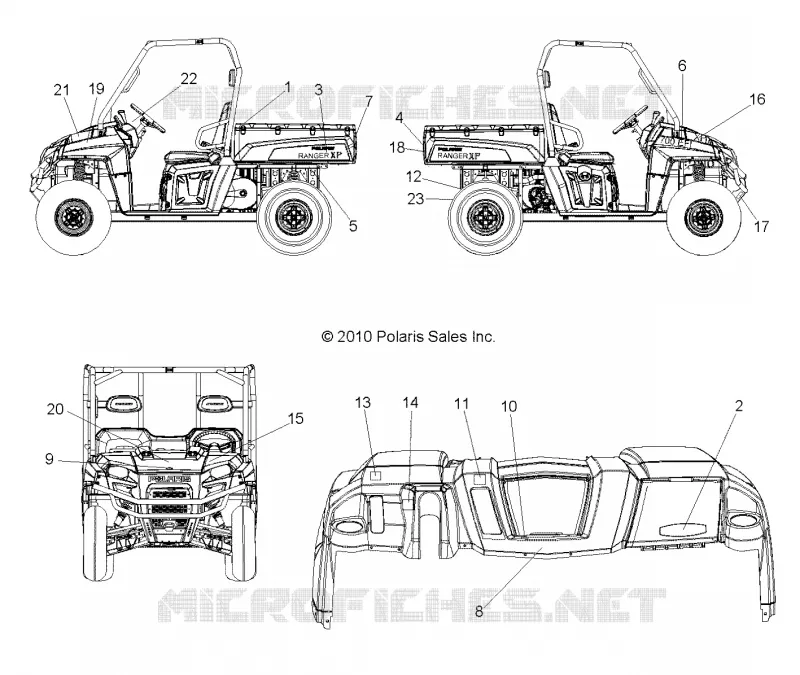

DECALS
5
Parts Diagram
Parts Catalog
by
FLOOR FENDERS
DECALS
10
11
12
13
14
15
15
15
15
15
15
16
16
16
16
16
16
16
16
17
18
18
18
18
18
18
19
19
20
20
21
21
21
21
21
21
21
21
22
22
23
1
Decal Warning Passenger/Tire Pressure CA [TH76ACC][TH76AFC][TH76AGC][TH76AHC][TH76ARC] [TH76ABC][TH76AZC][TY76ARC][TY76AGC][TY76AVC] [Built 2/14/11 and Before]
7176935
Not Available
1
Decal Warning Cont/Pass/Tire Pressure
7176334
Not Available
1
Decal Warning Passenger/Tire Pressure [Built 2/15/11 and After]
7177689
Not Available
2
Plate #RANGER Hardest Working Smoothest Riding# w/o Holes
5252753
$68,24 Unit Price incl. VAT
3
Decal Box #RANGER XP# Suede RH [AV]
7176037
Not Available
3
Decal Box #RANGER XP# Polaris Pursuit Camo RH [AB]
7176181
Not Available
3
Decal Box RANGER XP S. Red/T LH [TH76AZ][TH76AZC]
7177455
Not Available
3
Decal Box #RANGER XP# Fairway Green LH [TH76AF][TH76AFC]
7176900
Not Available
3
Decal Box #RANGER XP# Orange Madness LH [TH76AO]
7177136
Not Available
3
Decal Box #RANGER XP# Solar Red LH [AR]
7175587
Not Available
3
Decal Box #RANGER XP# Suede LH [AV]
7176036
Not Available
3
Decal Box #RANGER XP# Fairway Green RH [TH76AF][TH76AFC]
7176901
Not Available
3
Decal Box #RANGER HD# Sage Brush Green LH [AN]
7176241
Not Available
3
Decal Box #RANGER XP# Indy Red LH [TH76AK]
7177130
Not Available
3
Decal Box #RANGER XP# Sunset Red RH [AM][AZ]
7175582
Not Available
3
Decal Box RANGER XP S. Red/T RH [TH76AZ][TH76AZC]
7177456
Not Available
3
Decal Box #RANGER XP# Crimson Red LH [TH76AC][TH76ACC]
7176894
Not Available
3
Decal Box #RANGER XP# BWB RH [TH76AA]
7177135
Not Available
3
Decal Box #RANGER XP# Solar Red RH [AR]
7175588
Not Available
3
Decal Box #RANGER XP# Crimson Red LH [TH76AC][TH76ACC]
7176893
Not Available
3
Decal Box #RANGER XP# Orange Madness RH [TH76AO]
7177137
Not Available
3
Decal Box #RANGER XP# Sage Brush Green RH [AG]
7175580
Not Available
3
Decal Box #RANGER XP# BWB LH [TH76AA]
7177134
Not Available
3
Decal Box #RANGER XP# Indy Red RH [TH76AK]
7177131
Not Available
3
Decal Box #RANGER XP# Polaris Pursuit Camo LH [AB]
7176180
Not Available
3
Decal Box #RANGER XP# Sage Brush Green LH [AG]
7175579
Not Available
3
Decal Box #RANGER HD# Sage Brush Green RH [AN]
7176242
Not Available
3
Decal Box #RANGER XP# Sunset Red LH [AM][AZ]
7175581
Not Available
4
Decal #POLARIS# Tailgate Gold [AH][AL][AS]
7175623
Not Available
4
DECAL #POLARIS# TAILGATE WHITE
7175576
$23,09 Unit Price incl. VAT
5
DECAL REFLECTOR RED
7175628
$23,09 Unit Price incl. VAT
6
Decal #800 EFI# Hood Red LH [TH76AK]
7177124
Not Available
6
Decal #800 EFI# Hood Gold RH [AH]
7176179
Not Available
6
DECAL 800 EFI HOOD RH
7176177
$20,99 Unit Price incl. VAT
6
Decal #800 EFI# Hood Gold LH [AH]
7176178
Not Available
6
Decal Hood Side HD LH [AN]
7176238
Not Available
6
Decal #800 EFI# Hood LH [AY]
7176251
Not Available
6
DECAL 800 EFI HOOD LH
7176176
$20,99 Unit Price incl. VAT
6
Decal #800 EFI# Hood Black Stripe LH [TY76AV][TY76AVC]
7176896
Not Available
6
Decal #800 EFI# Hood Black Stripe RH [TY76AV][TY76AVC]
7176897
Not Available
6
Decal #800 EFI# Hood Red RH [TH76AK]
7177125
Not Available
6
Decal #800 EFI# Hood RH [AY]
7176252
Not Available
6
Decal Hood Side HD RH [AN]
7176239
Not Available
7
Decal Flag Rear
7175618
Not Available
8
Decal Warning Discretionary
7177615
Not Available
9
LOGO-POLARIS STAR
7078465
$23,09 Unit Price incl. VAT
10
DECAL #APPLY BRAKE TO START#
7170739
Not Available
11
DECAL CAUTION #SHIFT AT IDLE#
7172674
Not Available
12
Decal Hitch 2000 LBS Maximum
7176005
$15,74 Unit Price incl. VAT
13
DECAL PARK BRAKE
7174926
Not Available
14
DECAL AGE WARNING 16
7175566
Not Available
15
Decal Hood Top LH M. Black [AV]
7176255
Not Available
15
Decal Hood Top RH [AY]
7176244
Not Available
15
Decal Hood Top LH [AY]
7176243
Not Available
15
Decal Hood Top Red LH [TH76AK]
7177128
Not Available
15
Decal Hood Top Red RH [TH76AK]
7177129
Not Available
15
Decal Hood Top RH M. Black [AV]
7176256
Not Available
16
Decal Hood Side #XP# Red RH [TH76AK]
7177127
Not Available
16
Decal Hood Side #XP# Red LH [TH76AK]
7177126
Not Available
16
Decal Hood Side #XP# RH [AB][AM][AV][AZ]
7175594
Not Available
16
Decal Hood Side #XP# LH [AY]
7176247
Not Available
16
Decal Hood Side #XP# LH [AB][AM][AV][AZ]
7175593
Not Available
16
Decal Hood Side #XP# RH [AY]
7176248
Not Available
16
Decal Hood Side #XP# RH [AH][AL]
7176237
Not Available
16
Decal Hood Side #XP# LH [AH][AL]
7176236
Not Available
17
DECAL-REFLECTOR AMBER
7175627
$23,09 Unit Price incl. VAT
18
Decal Heavy Duty Tailgate [AN]
7175592
Not Available
18
Decal Tailgate EPS [AW][AZ]
7176730
Not Available
18
Decal Limited Edition Gold [TH76AB][TH76ABC][TY76AB]
7176895
Not Available
18
DECAL TAILGATE EPS GOLD [EPS][E57A9]
7176882
Not Available
18
Decal Limited Edition [AE][AJ]
7176761
Not Available
19
Decal Buckhead Hood Side LH [AL][AS]
7175629
Not Available
19
Decal Buckhead Hood Side RH [AL][AS]
7175630
Not Available
20
Decal Buckhead Hood Center [AL][AS]
7175634
Not Available
20
Decal Dash Center Stripes [AN]
7176240
Not Available
21
Decal High Output LH [TH76AC][TH76ACC][TH76AG][TH76AGC][TH76AR] [TH76ARC][TH76AZ][TH76AZC][TY76AG][TY76AGC] [TY76AR][TY76ARC][TH76AA][TH76AK][TH76AO] [TY76AZ]
7176878
Not Available
21
Decal High Output Black Stripe LH [TH76AF][TH76AFC][TY76AV][TY76AVC]
7176898
Not Available
21
Decal High Output Gold LH [TH76AB][TH76ABC][TH76AH]TH76AHC][TY76AB]
7176880
Not Available
21
Decal Hood Top White RH [TH76AA]
7177133
Not Available
21
Decal High Output RH [TH76AC][TH76ACC][TH76AG][TH76AGC][TH76AR] [TH76ARC][TH76AZ][TH76AZC][TY76AG][TY76AGC] [TY76AR][TY76ARC][TH76AA][TH76AK][TH76AO] [TY76AZ]
7176879
Not Available
21
Decal Hood Top White LH [TH76AA]
7177132
Not Available
21
Decal High Output Black Stripe RH [TH76AF][TH76AFC][TY76AV][TY76AVC]
7176899
Not Available
21
Decal High Output Gold RH [TH76AB][TH76ABC][TH76AH]TH76AHC][TY76AB]
7176881
Not Available
22
DECAL EPS [EAU]
7175528
$18,89 Unit Price incl. VAT
22
DECAL EPS GOLD [E87A9/B9][U87A9/B9]
7175657
Not Available
23
Decal Self Leveling Suspension [AN]
7175670
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
