CYLINDER
5

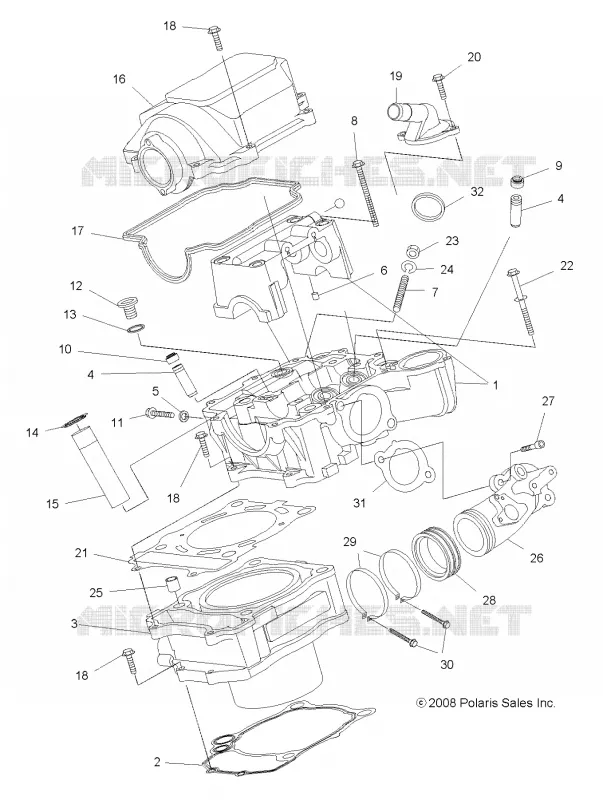

Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
EXHAUST
CYLINDER
1
2
3
4
4
5
6
7
8
10
10
11
12
13
14
15
16
17
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Head Cylinder [Incl. 4 6 7 Rocker Arm Support]
3090093
$1 275,74 Unit Price incl. VAT
2
Gasket Cylinder
3090092
Not Available
3
Unit Cylinder
3090202
$538,64 Unit Price incl. VAT
4
Guide Valve
3090203
Not Available
5
Gasket Copper [Built 12/20/09 and After]
3088030
$9,44 Unit Price incl. VAT
6
PIN DOWEL
3084721
$9,44 Unit Price incl. VAT
7
Stud [Built 8/19/10 and After]
3090095
Not Available
8
Bolt Flange
3090096
$9,44 Unit Price incl. VAT
9
Seal Exhaust Valve
3090098
$20,99 Unit Price incl. VAT
10
Seal Exhaust Valve
3090098
$20,99 Unit Price incl. VAT
11
Bolt Flange
3088135
Not Available
12
PLUG
3084860
$13,64 Unit Price incl. VAT
13
GASKET
3084861
$9,44 Unit Price incl. VAT
14
Gasket Spark Plug Pipe
3090100
$14,69 Unit Price incl. VAT
15
Pipe Spark Plug
3090099
$68,24 Unit Price incl. VAT
16
Cover Rocker
3090101
$125,99 Unit Price incl. VAT
17
O-Ring Rocker Cover
3090204
Not Available
18
Bolt Flange
3084874
Not Available
19
Adaptor Water Out
3090205
Not Available
20
BOLT FLANGE(10)
3084877
Not Available
21
Gasket Head
3090104
$110,24 Unit Price incl. VAT
22
Asm. Bolt Cylinder Head
3090206
Not Available
23
NUT-HEX-M8X1.25 8 ZPB.
7547076
$4,19 Unit Price incl. VAT
24
WASHER-LOCK M8X12.7ODX2MM ZY3
7556111
$3,14 Unit Price incl. VAT
25
Pin Knock
3087266
Not Available
26
Pipe Intake
3090137
$178,49 Unit Price incl. VAT
27
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
28
Adapter
3090208
$120,74 Unit Price incl. VAT
29
Asm. Band [Incl. 1]
3090209
$47,24 Unit Price incl. VAT
30
SCREW
3081497
$4,19 Unit Price incl. VAT
31
Gasket Intake Pipe
3090144
$9,44 Unit Price incl. VAT
32
Gasket Exhaust
3090004
$57,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
