1
Engine displacement
570
2
Year
2018
3
Trim
RZR 570
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
CAM CHAIN AND SPROCKET

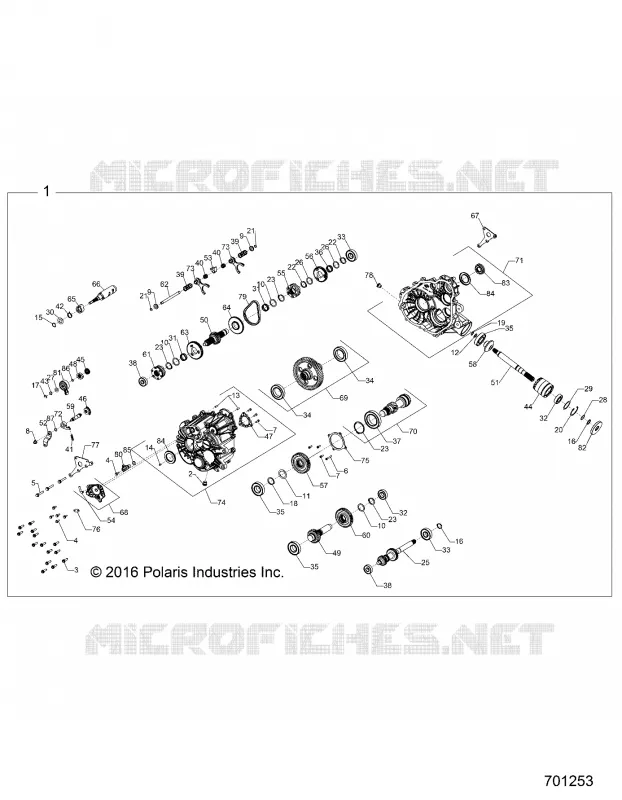

DRIVE TRAIN, MAIN GEARCASE
15
16
16
17
18
19
20
21
21
22
22
23
23
23
23
25
26
26
27
28
29
30
31
31
32
32
33
33
34
34
35
35
35
36
37
38
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
82
83
84
84
85
86
87
1
ASM-GEARCASE [INCL. ALL]
1333664
$4 630,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
6
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
7
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
8
NUT LOCK HEX FLANGE NYLON M8 X 1.25
3235210
$14,69 Unit Price incl. VAT
9
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
10
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
11
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
12
WASHER-17.3X25X1.5(115290)
3235213
$31,49 Unit Price incl. VAT
13
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
14
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
17
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
18
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
19
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
20
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
21
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
22
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
23
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
25
SHAFT BOSS LW UTILITY INPUT AVALANCHE
3235710
$367,49 Unit Price incl. VAT
26
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
27
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
28
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
29
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
30
SPACER 19.4 X 34.0 X 2.0
3235883
$41,99 Unit Price incl. VAT
31
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
32
BEARING
3233019
$54,59 Unit Price incl. VAT
33
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
34
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
35
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
36
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
37
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
38
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
39
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
40
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
41
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
42
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
43
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
44
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
45
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
46
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
47
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
48
STAR DETENT
3235982
$68,24 Unit Price incl. VAT
49
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
50
SHAFT-REVERSE 27T(285878)
3235380
$456,74 Unit Price incl. VAT
51
SHAFT-FRONT OUTPUT(285914)
3235394
$246,74 Unit Price incl. VAT
52
BELLCRANK 92 DEG
3235386
$62,99 Unit Price incl. VAT
53
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
54
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
55
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
56
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
57
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
58
GEAR-13T FRONT OUTPUT(352957)
3235237
$246,74 Unit Price incl. VAT
59
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
60
GEAR 46T STAGE 2
3235381
$246,74 Unit Price incl. VAT
61
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
62
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
63
GEAR LOW 61T
3235561
$157,49 Unit Price incl. VAT
64
SPROCKET-48T 6-FACE REVERSE
3235755
$152,24 Unit Price incl. VAT
65
CAM PARK
3235983
$283,49 Unit Price incl. VAT
66
DRUM SHIFT MACH
3235984
$519,74 Unit Price incl. VAT
67
WELDMENT REAR MOUNT BRACKET
3235239
$73,49 Unit Price incl. VAT
68
SUBASSEMBLY SECTOR COVER
3235713
$209,99 Unit Price incl. VAT
69
SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
3235335
$645,74 Unit Price incl. VAT
70
SUBASM. SHAFT
3235336
$703,49 Unit Price incl. VAT
71
SUBASSEMBLY LH CASE (INCLUDES ALL HARDWARE)
3235382
$850,49 Unit Price incl. VAT
72
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
73
SUBASSEMBLY SHIFT FORK
3235920
$136,49 Unit Price incl. VAT
74
SUBASSEMBLY RH COVER
3235995
$818,99 Unit Price incl. VAT
75
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
76
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
77
BRKT-REAR MOUNT(430598)
3235351
$89,24 Unit Price incl. VAT
78
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
79
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
80
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
82
SEAL TRIPLE LIP VITON 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT
83
SEAL TRIPLE LIP VITON HELIX 30 X 47
3234851
$68,24 Unit Price incl. VAT
84
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
85
O-RING
3234302
$13,64 Unit Price incl. VAT
86
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
87
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
