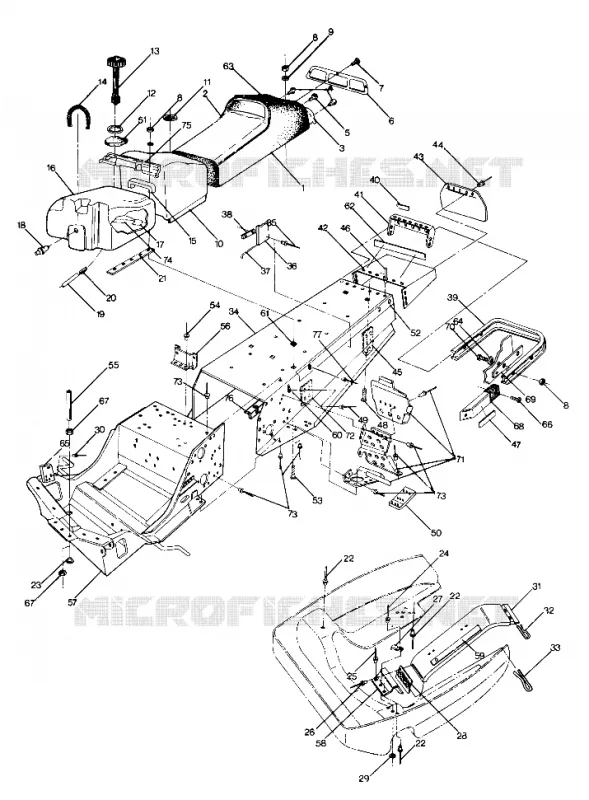

CHASSIS AND SEAT SPORT AND TRAIL (4914161416001A) FOR TRAIL DELUXE

CHASSIS AND SEAT ALL NORWEGIAN INDY MODELS (4914521452005A)

CHASSIS AND SEAT TRAIL DELUXE (4914161416003A)

CUSHION SEAT(TRAIL#88) Substituted by 2200747

2681353

Not Available

SEAT ASM (#88SPORT) Substituted by 2200747 ((Incl. 75-79) (SPORT)

2681317

Not Available

CUSHION SEAT(88TRAIL) Substituted by 2200748 (Incl. 75-79) (TRAIL)

2681314

Not Available

COVER SEAT(#88 TRAIL) Substituted by 2200739 (TRAIL)

2681315

Not Available

COVER SEAT (TRAIL#88) Substituted by 2200738 (Trail Special Only)

2681352

Not Available

COVER SEAT(#88 SPORT) Substituted by 2200738 (SPORT)

2681318

Not Available

HOUSING TAILLIGHT

5430425

Not Available

BULB BRAKELIGHT

4030019

Not Available

LENS TAILLIGHT

5430423

Not Available

SCREW(10)

7511840

Not Available

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

WASHER-.270X1.25X.060 FL-Y

7558221

$4,19 Unit Price incl. VAT

COVER TANK(#88SPORT) Substituted by 2200738 (SPORT)

2681319

Not Available

COVER TANK(#88) [No Longer Available] (TRAIL)

2681316

Not Available

GROMMET-GAS TANK

5430575

Not Available

GASKET-GAS CAP Substituted by 5810513

5810142

5810513

$15,74 Unit Price incl. VAT

GAUGE GAS Substituted by 2511246

2511149

2511246

$83,99 Unit Price incl. VAT

SPRING TANK FRONT

7042020

$27,29 Unit Price incl. VAT

CUSHION TANK H.D.

5420126

Not Available

TANK GAS (Incl. 19-22)

2511150

Not Available

FUELPICKUP W/STRAINER

7052037

7052301

$26,24 Unit Price incl. VAT

FITTING OUTLET DOUBLE

7052023

$36,74 Unit Price incl. VAT

KIT-TANK VENT

2200190

Not Available

VENT FITTING TANK Substituted by 5430579

5430669

Not Available

PAD-GAS TANK

5810063

$7,97 Unit Price incl. VAT

RIVET-POP3/16(.251-.375)AL-LFB

7621457

$2,09 Unit Price incl. VAT

PLUG

7080288

Not Available

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$2,09 Unit Price incl. VAT

RIVET(50)

7621452

$2,09 Unit Price incl. VAT

RIVET

7621330

$2,09 Unit Price incl. VAT

CLIP WIRING (10) Substituted by 7080665

4020035

Not Available

HINGE (TRAIL)

5211047

Not Available

WASHER FLAT

7558212

$1,56 Unit Price incl. VAT

RIVET CH. Q

7621429

$2,09 Unit Price incl. VAT

GUARD CLUTCH Substituted by 5240965

5230118

Not Available

PIN RETAINING (10)

7080216

7080698

$17,84 Unit Price incl. VAT

PIN FRONT (TRAIL)

7080311

Not Available

TUNNEL (TRAIL) (TRAIL)

1011663

Not Available

TUNNEL TRAIL DELUXE

1011680

Not Available

TUNNEL ASM. (SKS) [No Longer Available] (SKS Only) w/1011694 (TRAIL)

1011675

Not Available

TUNNEL (SPORT) (SPORT)

1011662

Not Available

RIVET-POP 5/32(.251-.375)-ST-B

7621323

$2,09 Unit Price incl. VAT

BELT SEAT

7080322

Not Available

WIRE-SEAT-BELT

5223864

Not Available

PLATE-SEAT BELT

5210842

Not Available

BUMPER REAR Substituted by 5224334-067

5224334

Not Available

BUMPER R.(N-INDY) Substituted by 5224347-067 (Sport Trail)

5224347

Not Available

DECAL TRACK Substituted by 7072872

7072132

Not Available

PANEL TUNNEL BACK Substituted by 5220478-067

5220478

Not Available

PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)

1011694

Not Available

FLAP SNOW SILVER Substituted by 5410394-1106 (400)

5410394

5410394-1038

$194,24 Unit Price incl. VAT

POP RIVET(50)

7621418

$2,09 Unit Price incl. VAT

BRKT R.SUSP LH MTG. Substituted by 1011749-067

1011666

Not Available

BRKT R.SUSP RH MTG. Substituted by 1011750-067

1011667

Not Available

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

REFLECTOR RED

2670070

$15,95 Unit Price incl. VAT

BOLT

7512103

$6,29 Unit Price incl. VAT

RIVET(50)

7621222

$1,04 Unit Price incl. VAT

PLATE TUNNEL RH

5220635

Not Available

PLATE TUNNEL LH

5220634

Not Available

FOAM FILLER

5810201

Not Available

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Not Available

SCR-RHCAR-1/4-20X0.75 GR5 ZY3

7512193

$4,19 Unit Price incl. VAT

RIVET(50)

7621301

Not Available

TUBE DRAIN BATTERY [No Longer Available] (Twin ES)

5332405

Not Available

BRACKET Substituted by 5221932-067

5221932

Not Available

BULKHEAD (TRAIL) (Trail)

1011612

Not Available

BULKHEAD (SPORT&GT) (Sport)

1011615

Not Available

BRACKET HINGE Substituted by 5241437

5220406

Not Available

DECAL WARNING [No Longer Available] (600 SE)

7072153

Not Available

SNAP-MALE(10)

7080227

Not Available

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

DECAL [No Longer Available] (400 SKS Only) (400)

7072414

Not Available

BUCKLE&STRAP (Trail)

2681291

Not Available

BUCKLE&STRAP (Sport 400 600)

2681290

Not Available

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

SUPPORT MUFFLER Substituted by 1011601-067

1011601

Not Available

SCR-6X3/8 PH TR HD GR5-Y

7511848

$7,34 Unit Price incl. VAT

PALNUT(10) (Twin ES)

7670031

Not Available

CAP BUMPER Substituted by 5430930-070 (TRAIL)

5430930

Not Available

SPACER R.BUMPER [No Longer Available]

5211109

Not Available

BOLT(10)

7512240

$7,34 Unit Price incl. VAT

FOOTREST ASM LH

2200250

Not Available

FOOTREST ASM RH

2200254

Not Available

BRKT. Substituted by 5220542-067

5220542

Not Available

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

LINE-BOOST 3/16 ID 85 CM

8450003

8450003-1525

$136,49 Unit Price incl. VAT

STRAP GAS TANK Substituted by 5222330-067

5221722

Not Available

TUNNEL REINFORCEMENT [No Longer Available] (SPORT)

5220395

Not Available

RIVET Substituted by 7661812 (SPORT)

7661818

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
