1
Engine displacement
0
2
Year
1998
3
Trim
EURO LITE TOURING - E983133
4
Parts Catalog

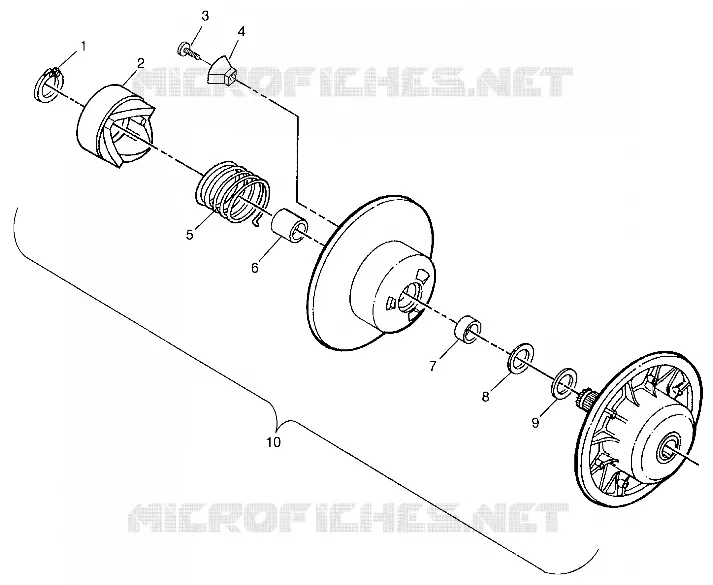

DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
ENGINE MOUNTING
DRIVEN CLUTCH
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
RING RETAINING(10)
7710423
Not Available
2
RAMP STATIONARY
5630383
Not Available
3
BOLT(10)
7511854
$2,09 Unit Price incl. VAT
4
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT
5
SPRING CLUTCH SVR. (Silver)
7041499
$115,49 Unit Price incl. VAT
6
Bearing Moveable 1 Inch
3576511
$52,49 Unit Price incl. VAT
7
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
8
Washer .030
7556804
$1,56 Unit Price incl. VAT
9
Washer .020
7555898
$2,09 Unit Price incl. VAT
10
CLUTCH DRVN P-90 SILVER (Incl. 1-9)
1322197
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
