1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 RXL - S910768
4
Parts Catalog

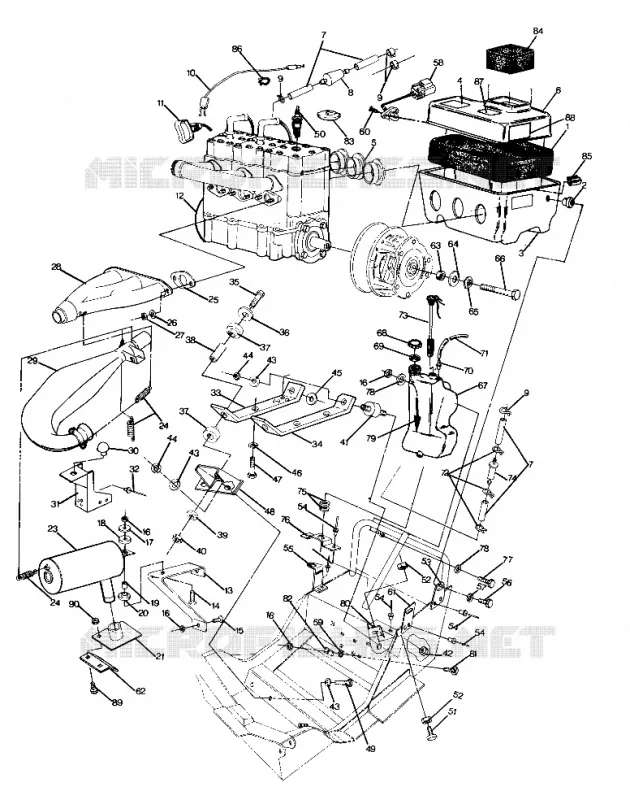

ENGINE MOUNTING 650 RXL (4919531953013A)
5
Parts Diagram
Parts Catalog
FROM SERIAL NUMBER 1822512 (4919531953012B)
by
SUSPENSION 650 RXL (4919531953015A)
ENGINE MOUNTING 650 RXL (4919531953013A)
1
BAFFLE ASM.
1253104
Not Available
2
NUT WELL
7541923
$10,49 Unit Price incl. VAT
4
DECAL COOLING SYSTEM [No Longer Available]
7072131
Not Available
5
BOOT RELIEVED
5410585
Not Available
6
COVER SILENCER(DRILLED)
5431220
Not Available
7
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
8
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
9
CLAMP-HOSE(10)
7080134
Not Available
10
CABLE THROTTLE Substituted by 7080555
7080403
Not Available
11
HANDLE-RECOIL
5430520
Not Available
12
ENG EC65PL-03(EFI) [No Longer Available]
1211463
Not Available
13
SUPPORT MUFFLER Substituted by 5220695-067
5220695
Not Available
14
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
15
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
16
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
17
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
18
WASHER RUBBER
5410436
$3,14 Unit Price incl. VAT
19
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
20
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
21
STINGER OUTLET (RXL) Substituted by 1260569-067
1260569
Not Available
23
RESONATOR [No Longer Available]
1260550
Not Available
24
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
25
GASKET EXHAUST Substituted by 3084439
3082510
Not Available
26
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
27
NUT(10)
3080285
Not Available
28
MANIFOLD WELD BLK. Substituted by 1260477-029
1260477
Not Available
30
DAMPNER VIB.
5410467
$16,79 Unit Price incl. VAT
31
SUPPORT MUFFLER Substituted by 1011831-067
1011831
Not Available
32
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
33
PLATE ENG. RH
5220705
Not Available
34
PLATE ENG. LH
5220704
Not Available
35
SCREW(10)
7512533
Not Available
36
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
37
MOUNT ENGINE
5410390
Not Available
38
SPACER (MTR.MT.)
5332778
Not Available
39
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
40
NUT FLEX LOC(10)
7542507
Not Available
41
MOUNT
3110022
Not Available
42
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
43
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
44
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
45
WASHER
7555721
$2,09 Unit Price incl. VAT
46
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
47
BOLT
7512539
$7,34 Unit Price incl. VAT
48
MOUNT FRONT Substituted by 1011502-067
1011502
Not Available
49
BOLT(10) Substituted by 7512457
7512491
Not Available
50
SPARKPLUG(8)
3070165
$7,34 Unit Price incl. VAT
51
STOP
3110023
Not Available
52
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
53
BRACKET INTAKE SILENCER
5211274
$18,89 Unit Price incl. VAT
54
RIVET Substituted by 7661638
7661625
7661638
$2,09 Unit Price incl. VAT
55
BRKT AIR SILENCER(RXL) Substituted by 5222617-067
5222617
Not Available
56
SCREW
7512279
$1,56 Unit Price incl. VAT
57
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
58
SENSOR AIR TEMP.
3084105
Not Available
60
SCREW(10)
7511840
Not Available
61
BRKT F.SILENCER(RXL) [No Longer Available]
5211296
Not Available
62
DEFLECTOR-SNOW EXH. Substituted by 5222615-067
5222615
Not Available
63
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
64
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
65
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
66
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
67
TANK OIL (Classic)
5430997
Not Available
68
CAP-OIL TANK [No Longer Available]
5430594
Not Available
69
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
70
VENT-TANK
5430579
Not Available
71
VENT LINE 1/8 BULK Substituted by 8360009-600
8360009
8360009-600
$83,99 Unit Price incl. VAT
72
CLAMP
7080236
$3,14 Unit Price incl. VAT
73
SENSOR OIL LEVEL W/CONN. Substituted by 4040040 (Classic)
4040016
4040040
$141,74 Unit Price incl. VAT
74
FILTER
2530009
$12,59 Unit Price incl. VAT
75
GROMMET RUBBER
5410021
Not Available
76
BRACKET
5223985
Not Available
77
BOLT
7512103
$6,29 Unit Price incl. VAT
78
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
79
DECAL OIL LEVEL [No Longer Available]
7072160
Not Available
80
LIMITER Substituted by 1011503-067
1011503
Not Available
82
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
83
CAP PRESSURE
2511155
Not Available
84
INTAKE ASM FOAM
1253107
$68,24 Unit Price incl. VAT
85
CLIP SILENCER
7670055
$11,54 Unit Price incl. VAT
86
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
87
DECAL FOAM CAUTION [No Longer Available]
7072907
Not Available
88
DECAL INTAKE SILENCER [No Longer Available]
7072908
Not Available
89
BOLT(10)
7515103
Not Available
90
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
