1
Engine displacement
570
2
Year
2019
3
Trim
ACE 570 EFI EPS HD
4
Parts Catalog
COOLING SYSTEM
5

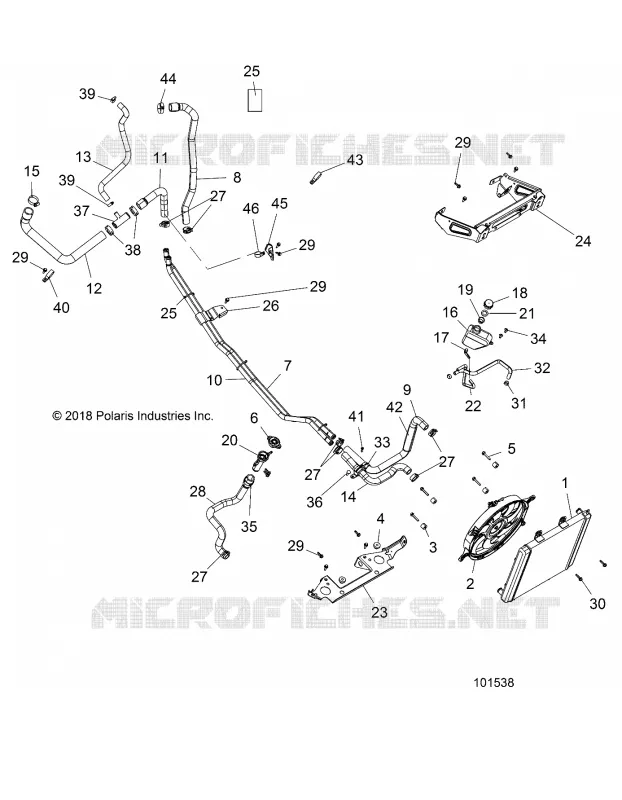

Parts Diagram
Parts Catalog
HEADLIGHTS, TAILLIGHTS AND BULBS
by
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
27
27
27
28
29
29
29
29
29
30
31
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
1
ASM-RADIATOR CORE
1241012
$892,49 Unit Price incl. VAT
2
ASM-FAN AND MOTOR TRIPAC SGL
2411330
$303,96 Unit Price incl. VAT
3
SPACER-6.6IDX19ODX15 NYL BLK
5137361
$10,49 Unit Price incl. VAT
4
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
5
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
6
CAP PRESSURE
1240300
$73,49 Unit Price incl. VAT
7
TUBE-COOLANT 3/4 ENG OUT
5140811
$83,99 Unit Price incl. VAT
8
HOSE-COOLANT REAR ENG OUT
5416035
$68,24 Unit Price incl. VAT
9
HOSE-COOLANT
5415709
$68,24 Unit Price incl. VAT
10
TUBE-COOLANT 3/4 ENG IN
5140812
$83,99 Unit Price incl. VAT
11
HOSE-COOLANT REAR ENG IN
5416033
$68,24 Unit Price incl. VAT
12
HOSE-COOLANT ENGINE INLET
5415129
$73,49 Unit Price incl. VAT
13
HOSE-COOLANT BYPASS
5415447
$83,99 Unit Price incl. VAT
14
HOSE-RADIATOR ACE 570
5416034
$62,99 Unit Price incl. VAT
15
CLAMP-HOSE 13/16#-1 1/2#
7081174
$13,64 Unit Price incl. VAT
16
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
17
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
18
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
19
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
20
FILLER REMOTE COOLANT SMALL
5439079
$62,99 Unit Price incl. VAT
21
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
22
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
23
MNT-RADIATOR M.BLK
5262753329
$167,99 Unit Price incl. VAT
24
MNT-RADIATOR UPPER E-COAT
5262754329
$167,99 Unit Price incl. VAT
25
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
$13,64 Unit Price incl. VAT
26
CLAMP-COOLANT LINES
5258169
$20,99 Unit Price incl. VAT
27
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
28
HOSE-COOLANT FRONT
5415876
$73,49 Unit Price incl. VAT
29
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
30
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
31
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
32
LINE FUEL
8450120600
$136,49 Unit Price incl. VAT
33
BRACKET-COOLANT TUBE
5451221
$16,79 Unit Price incl. VAT
34
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
35
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
36
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
37
CONNECTOR-TEE 1X1X0.5
7052530
$10,49 Unit Price incl. VAT
38
SPRINGBAND-CLAMP 35/12 BLK
7080844
$19,94 Unit Price incl. VAT
39
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
40
CLAMP-HOSE 1.312 VINYL COATED
7080851
Not Available
41
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
42
CONDUIT-FLEX 1.00 ID PE 10CM [TO 8/19/2020]
552179310
$13,64 Unit Price incl. VAT
43
Clamp Hose
7080807
$17,84 Unit Price incl. VAT
44
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
45
BRKT-HOSE COOLANT ACE
5267081
$19,94 Unit Price incl. VAT
46
CLAMP-VINYL COATED 1.00IN ID
7081854
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
